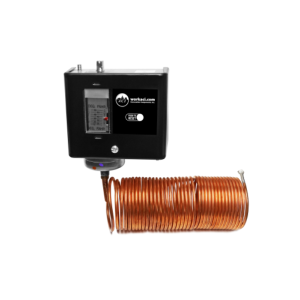

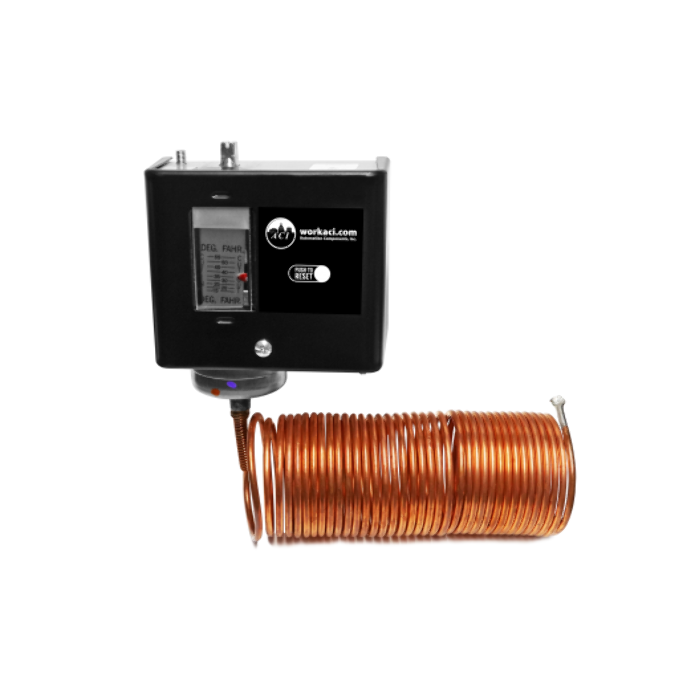

Auto Components A/FLS-20-A Freeze Stat, Automatic Reset, 20 ft.

Product Description

The Auto Components A/FLS-20-A is a reliable freeze stat designed for automatic reset applications. It effectively protects heating and cooling coils from freezing conditions in various HVAC systems. This model features a low limit and a temperature range of fifteen to fifty-five degrees Fahrenheit. The device includes two isolated sets of contacts suitable for different circuit needs.

• Low temperature limit switch for effective freeze protection
• Vapor charged capillary sensing element
• Designed for HVAC applications with temperature stratification

Product Highlights

This freeze stat is specifically built to safeguard vital HVAC components by triggering automatic resets when temperatures drop below set levels.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/FLS-20-A

Technical Specifications

• Temperature Range: 15 F to 55 F
• Fixed Differential: 5 F
• Tubing Length: 20 ft. (1/8 in. O.D.)
• Contact Type: Four-wire two circuit block
• Enclosure Rating: NEMA 1
• Conduit Knockout: 1/2 in. included
