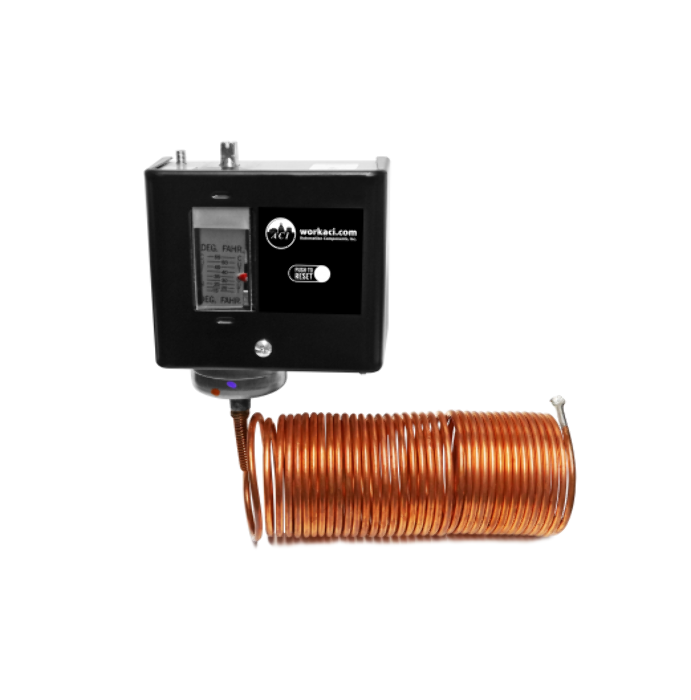

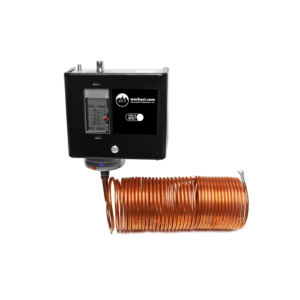

Auto Components A/FLS-06-M Freeze Stat Manual Reset 6 ft.

Product Description

The Auto Components A/FLS-06-M is a manual reset freeze stat used to monitor low temperatures. This unit is designed for applications that may experience temperature stratification. It protects heating and cooling coils from freezing.

• Low temperature limit switch
• Vapor charged capillary sensing element
• NEMA 1 rated metal enclosure

Product Highlights

This freeze stat features a range of fifteen degrees Fahrenheit to fifty-five degrees Fahrenheit with a fixed differential of five degrees Fahrenheit. It includes six feet of one-eighth inch outside diameter tubing for optimal placement. The two isolated sets of contacts enhance reliability in critical temperature monitoring applications.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/FLS-06-M
• Minimum Order Quantity: 1
• Availability: In Stock (10 units)

Technical Specifications

• Range: 15°F to 55°F
• Fixed Differential: 5°F
• Usage: Protects heating and cooling coils
• Enclosure Rating: NEMA 1
• Conduit Knockout: 1/2 inch
• Contact Type: Four-wire two circuit contact block
