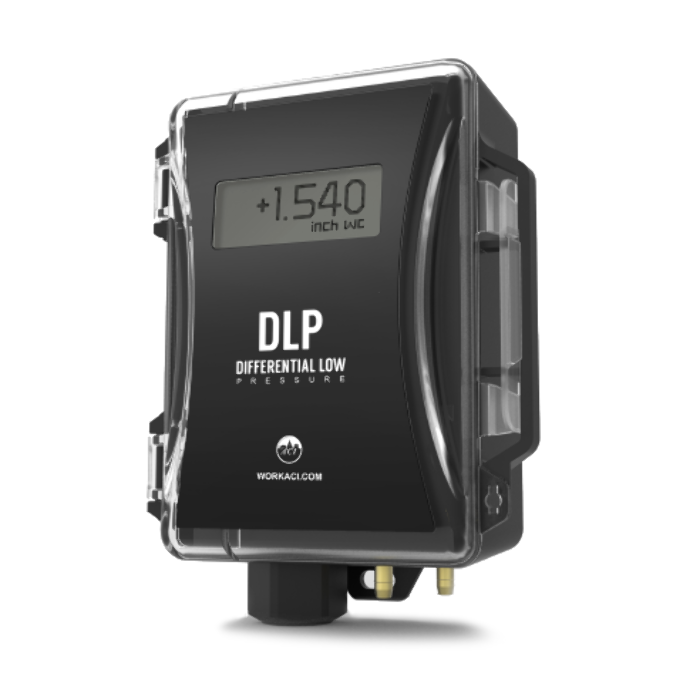

Auto Components A/DLP-010-W-U-D-A-3 Differential Low Pressure Transmitter

Product Description

The Auto Components A/DLP-010-W-U-D-A-3 is a differential low pressure transmitter designed for HVAC applications. This device operates within a voltage range of sixteen to thirty-six volts DC and provides a four to twenty milliamp output. It is suitable for various applications, including building and duct static pressure, filter monitoring, airflow measurement, and process control.

• Power supply voltage of sixteen to thirty-six VDC.
• Output signal of four to twenty mA.
• Ten inch default ranges and three hundred fifty inch water column proof pressure.

Product Highlights

This transmitter features a flame retardant polycarbonate enclosure that adheres to UL94-5VA standards and includes an LCD display. It also comes with a pitot tube and a DIN rail clip for easy installation.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/DLP-010-W-U-D-A-3

Technical Specifications

• Voltage Supply: 16 to 36 VDC
• Output: 4 to 20 mA
• Default Range: 10 inches
• Proof Pressure: 350 inches w.c.
• Enclosure: Flame Retardant Polycarbonate UL94-5VA
• Display: LCD Display
• Included Components: Pitot Tube, DIN Rail Clip
• Applications: Building Static Pressure, Duct Pressure Monitoring
