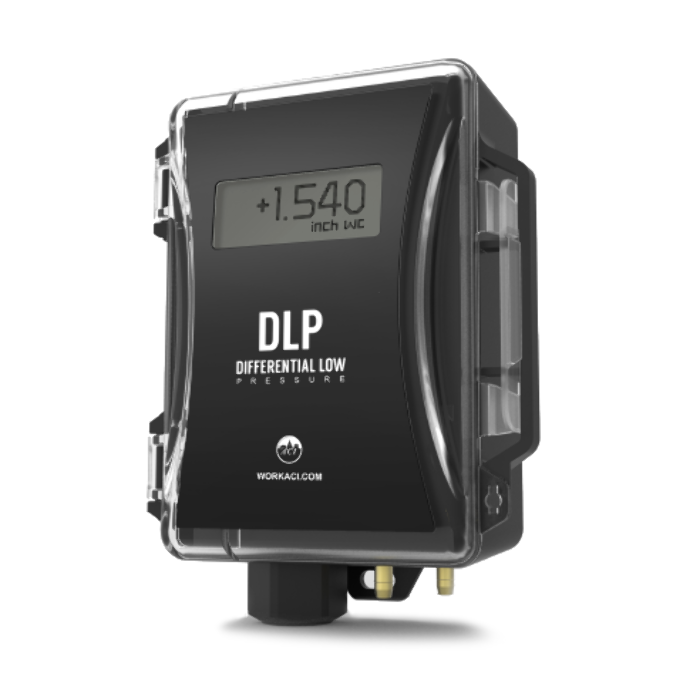

Auto Components A/DLP-001-W-U-D-A-0 Differential Low Pressure Transmitter

Product Description

The Auto Components A/DLP-001-W-U-D-A-0 is a differential low-pressure transmitter designed for HVAC applications. It operates on a supply voltage of sixteen to thirty-six VDC and provides a four to twenty mA output signal. This transmitter comes with default pressure ranges of one inch and a proof pressure rating of two hundred seventy inches water column.

• Features a flame-retardant polycarbonate enclosure.
• Includes an LCD display for easy monitoring.
• Ideal for building and duct static pressure, filter monitoring, and air flow measurement.

Product Highlights

This product is suitable for various process control applications. The piezoresistive, silicon sensing element ensures accurate differential pressure measurements, providing an effective analog output.

Product Information

Standard Information

• Brand: Auto Components
• Manufacturer Part Number: A/DLP-001-W-U-D-A-0

Technical Specifications

• Supply Voltage: 16 to 36 VDC
• Output: 4 to 20 mA
• Default Pressure Ranges: 1 inch
• Proof Pressure: 270 inches w.c.
• Enclosure Material: Flame-retardant polycarbonate UL94-5VA
• Display: LCD
