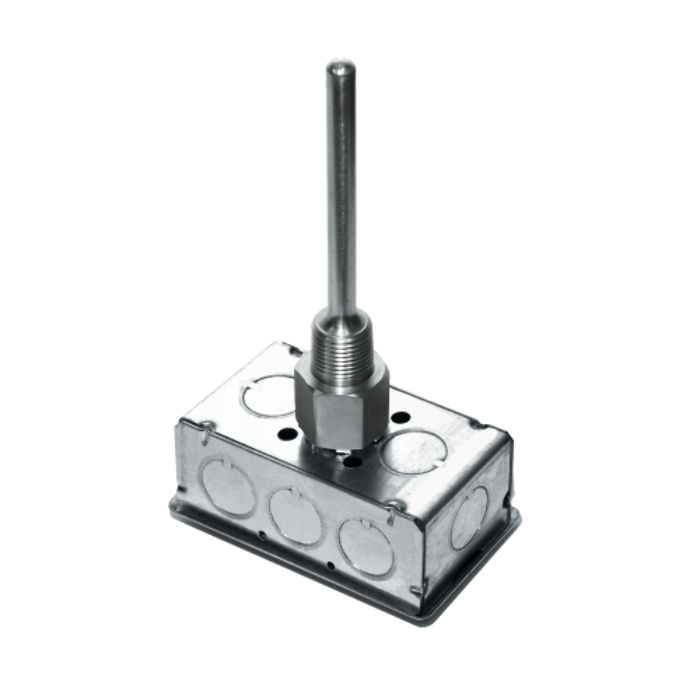

Auto Components A/CP-I-4-GD Immersion Temperature Sensor 4 in.

Product Description

The Auto Components A/CP-I-4-GD is a reliable immersion temperature sensor designed for HVAC applications. This sensor is suitable for use in chilled water systems, hot water systems, boilers, pumps, and chillers. It features a one-quarter inch diameter stainless steel probe equipped with two fourteen inch, 22 AWG etched Teflon lead wires to differentiate between sensor types.

• Built with a galvanized enclosure for durability.
• Proven double encapsulation process to enhance moisture resistance.
• The high-quality thermally conductive epoxy for improved response times.

Product Highlights

The immersion temperature sensor is perfect for various applications, ensuring accuracy in temperature measurement.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/CP-I-4-GD

Technical Specifications

• Mounting: Well Mount
• Enclosure: Galvanized
• Probe Lead: 2-4
• Configuration: Immersion
• Sensors Application: Temperature
• Temperature Sensor Type: 10K Type II
