Auto Components A/AN-DO-4-10CL2P Duct Temperature Sensor 4 in.

Product Description

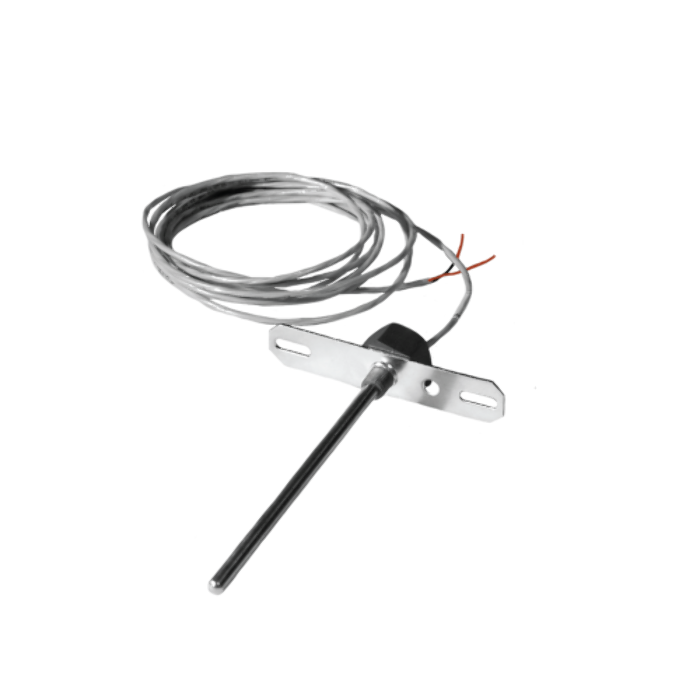

The Auto Components A/AN-DO-4-10CL2P is a duct temperature sensor designed for HVAC applications. This device features a ten K type III thermistor and a four inch probe, making it suitable for various heating, ventilation, and air conditioning systems.

• Equipped with a stainless steel probe and two color-coded lead wires.
• Ideal for monitoring temperatures in roof top units and air handlers.
• Manufactured using a double encapsulation process for durability.

Product Highlights

This sensor is used for monitoring supply, discharge, return, and mixed air temperatures in smaller duct applications. Its high-quality thermally conductive epoxy enhances response time.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/AN-DO-4-10CL2P

Technical Specifications

• Mounting: Duct Mount, Flanged Mount
• Probe Lead: 2-4
• Configuration: Duct
• Sensors Application: Temperature
• Temperature Sensor Type: 10K Type III
• Enclosure: No Box
