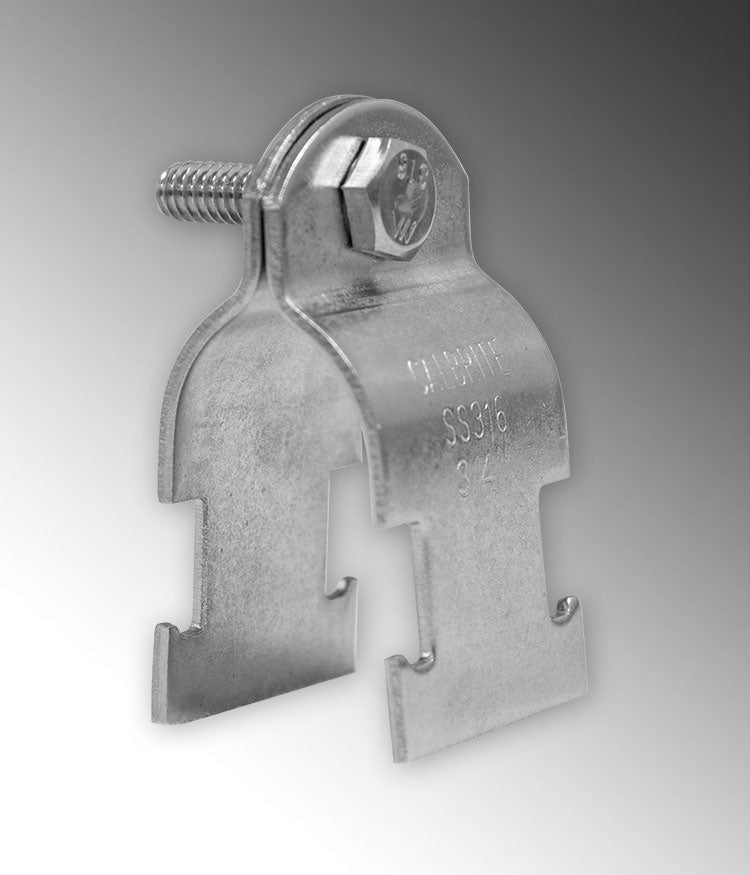

Atkore S61200SC00 Cal Pipe 1-1/4 Strut Clamp

Product Description

The Atkore S61200SC00 is a strut clamp designed for one and a quarter inch conduit. This clamp is suitable for use with standard one and five-eighths inch channels. The product is made from type 316 stainless steel, ensuring durability and resistance to corrosion.

• Load capacity of 600 pounds
• Includes a 316 stainless steel nut and a 1/4-20 x 3/4 inch bolt
• Polished finish for enhanced corrosion resistance

Product Highlights

This clamp offers a robust construction ideal for various applications in electrical and plumbing work. It provides secure attachment for conduits to channels, enhancing safety and reliability in installations.

Product Information

Standard Information

• Manufacturer: Atkore
• MPN: S61200SC00

Technical Specifications

• Application: For use at any point along the slot side of the channel, inserted into the two channel returns
• Conduit Size: 1-1/4 inches
• Dimensions: 3-1/4 inches L x 1-1/4 inches W x 1/4 inch D
• Finish: Polished
• Flange Size: 0.08 inches
• Includes: 316 stainless steel nut and 1/4-20 x 3/4 inch bolt
• Load Capacity: 600 pounds
• Material: 316 stainless steel
• Standards/Approvals: UL Listed
• Suitable For Use With: Standard 1-5/8 inch channel
• Type: 1-Hole
