Atkore P1325-EG Unistrut 4H Angle Bracket

Product Description

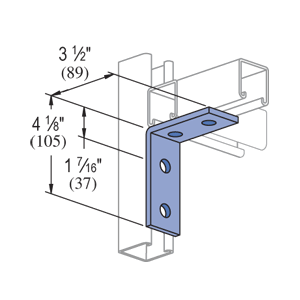

The Atkore P1325-EG is a Unistrut 90 degree angle fitting designed for structural support in various applications. It features four holes for secure fastenings and is constructed from 33 stainless steel for durability. The dimensions are three and a half inches in length and one and five-eighths inches in width, with a thickness ranging from zero point twenty-two to zero point twenty-five inches.

• Constructed from 33 stainless steel
• Electro-galvanized finish for corrosion resistance
• Perfect for use with 1-5/8 inch channels

Product Highlights

This angle bracket is suitable for commercial and industrial applications, providing a strong and reliable connection in metal framing systems.

Product Information

Standard Information

• Manufacturer: Atkore
• UPC: 78636413251

Technical Specifications

• Application: Commercial and Industrial Applications
• Finish: Electro-Galvanized
• Hole Size: 9/16 inches
• Hole Spacing: 13/16 inches End, 1-7/8 inches Center
• Length: 3-1/2 inches
• Manufacturer Part Number: P1325-EG
• Material: 33 Stainless Steel
• Number of Holes: 4
• Series: P1325
• Standards/Approvals: ASTM B633/Type III SC1/SC3/A575/A576/A635/A36/A1011
• Suitable For Use With: 1-5/8 inch Channel
• Width: 1-5/8 inches
