Athena dip-rec-48 48 Inch Rectangular Gas Fire Pit Burner Pan

Product Description

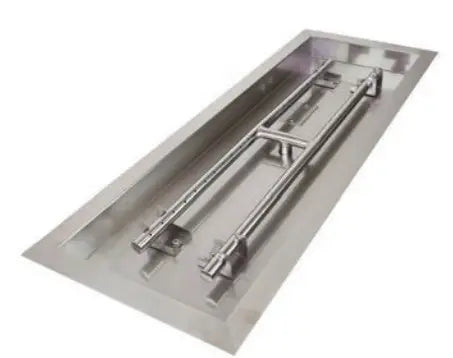

The ATHENA dip-rec-48 is a 48-inch drop-in rectangular stainless steel gas fire pit burner and pan designed for natural gas applications. The assembly consists of a rectangular stainless steel pan insert and a stainless steel burner that delivers up to 95,000 BTU/h with variable-height flame presentation. The match-light ignition design keeps the package simple and serviceable. This unit is intended for installation into a custom-built or pre-existing outdoor fire pit enclosure and is typically set by a licensed gas technician or experienced landscape contractor.

The dip-rec-48 suits residential and light-commercial outdoor fire feature builds where a rectangular drop-in format is required. The pan insert measures 50.5 inches wide by 16.5 inches long by 2 inches deep, while the burner itself measures 46 inches long by 12 inches wide. The natural gas fuel type makes it compatible with properties already plumbed for natural gas service. No media, access door, ignition system, or nozzles are included, so the installer must source those components separately based on the project design.

Key Features

• Up to 95,000 BTU/h output with variable-height flame
• Rectangular stainless steel burner and pan insert resist corrosion and heat
• Drop-in bowl insert format for integration into custom outdoor fire pit enclosures
• Match-light ignition keeps the system mechanically simple and easy to service
• Pan insert dimensions: 50.5 inches wide x 16.5 inches long x 2 inches deep
• Burner dimensions: 46 inches long x 12 inches wide

Compatibility

Designed as a drop-in replacement or new-build burner and pan assembly for rectangular outdoor gas fire pit enclosures plumbed for natural gas service.

Installation Notes

Installation must be performed by a licensed gas technician in accordance with local codes and NFPA 54 (National Fuel Gas Code). Shut off the gas supply at the source and confirm zero pressure at the connection point before beginning work. The match-light configuration requires a separate ignition source and does not include an electronic ignition system. Verify that the enclosure dimensions accommodate the pan insert and that the gas line is sized appropriately for the 95,000 BTU/h load before finalizing connections.

Technical Specifications

• Fuel Type: Natural Gas
• Max Output: 95,000 BTU/h
• Flame Presentation: Variable Height
• Ignition Type: Match Light
• Burner Shape: Rectangle
• Burner Material: Stainless Steel
• Insert Material: Stainless Steel
• Insert Width: 50.5 inches
• Insert Length: 16.5 inches
• Insert Depth: 2 inches
• Burner Length: 46 inches
• Burner Width: 12 inches
• Gas Burner Package Type: Bowl Insert
• Nozzles Included: No
• Media Included: No
• Ignition System Included: No
• Submersible: No

Standard Information

• Brand: ATHENA
• Manufacturer Part Number: dip-rec-48
