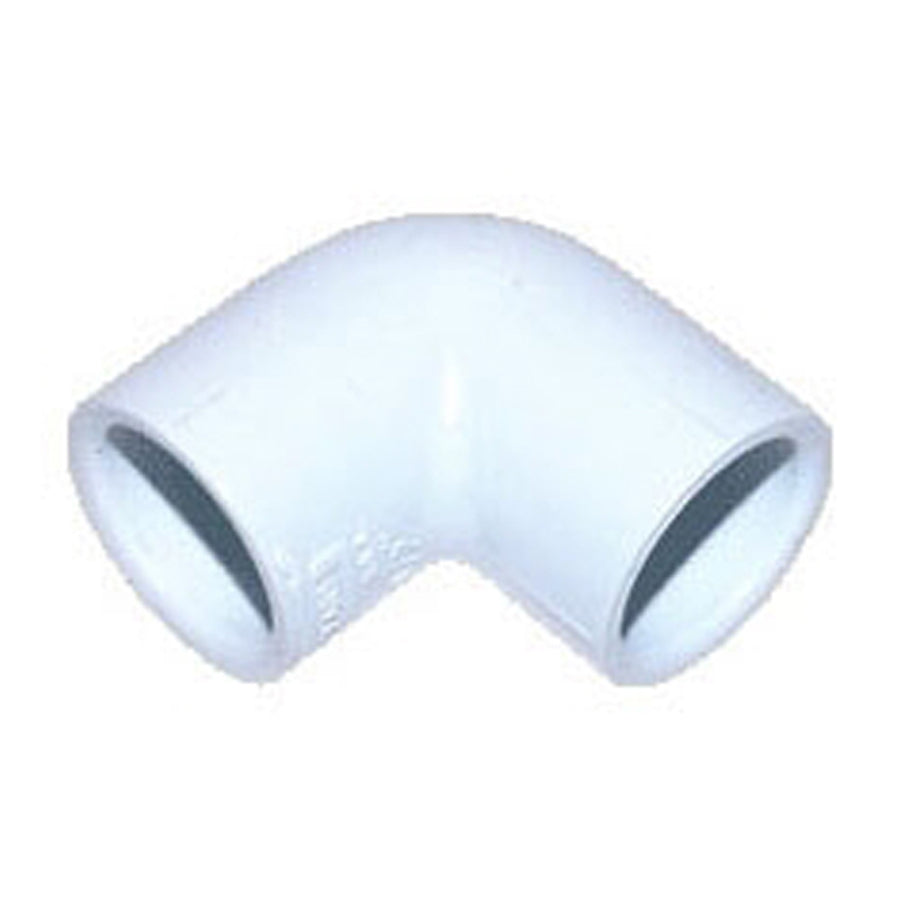

Atco Rubber Products 0314 Pvc 90 Degree Elbow 1/2 Inch

Product Description

The ATCO RUBBER PRODUCTS 0314 is a Schedule 40 PVC 90-degree elbow fitting sized at 1/2 inch socket x 1/2 inch socket. It is used to change flow direction in condensate drain lines and general plumbing applications. The straight-body design provides a clean, full 90-degree turn without offset. Both ends accept slip-socket connections, making installation straightforward with standard PVC solvent cement. This fitting meets NSF applicable standards and is suited for HVAC condensate management systems as well as light-duty plumbing runs. HVAC technicians and plumbers are the primary installers.

This fitting is designed for condensate drain and plumbing applications where a 90-degree direction change is needed in a 1/2-inch PVC line. It performs well in residential and light commercial systems where Schedule 40 PVC is the specified pipe material. Typical uses include routing condensate drain lines around obstacles, connecting to drain pans, and general plumbing rough-in work requiring a right-angle turn in half-inch pipe runs.

Key Features

• 90-degree straight elbow geometry for precise right-angle direction changes
• Schedule 40 wall thickness for standard residential and light commercial pressure ratings
• 1/2 inch socket x 1/2 inch socket end connections for slip-fit solvent-welded assembly
• PVC construction resists corrosion and common condensate drain chemistry
• Meets NSF applicable standards for plumbing use

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2-inch Schedule 40 PVC condensate drain and plumbing systems.

Installation Notes

Installation is performed by licensed HVAC technicians or plumbers. Shut off any connected equipment and relieve system pressure before cutting into an existing line. Use a compatible Schedule 40 PVC solvent cement and primer applied per the cement manufacturer instructions and applicable IPC or local plumbing code requirements. Do not apply heat or use threaded connections on the socket ends, as this fitting is designed for solvent-weld assembly only.

Technical Specifications

• Material: PVC
• Type: Straight
• Angle: 90 Degrees
• Size A: 1/2 inch
• Size B: 1/2 inch
• End Connection: Socket x Socket
• Schedule: 40
• Applicable Standard: NSF
• Application: Condensate Drain and Plumbing

Standard Information

• Brand: ATCO RUBBER PRODUCTS
• Manufacturer Part Number: 0314
