ATCO RUBBER FLEX-UPC036-7BAG

Product Description

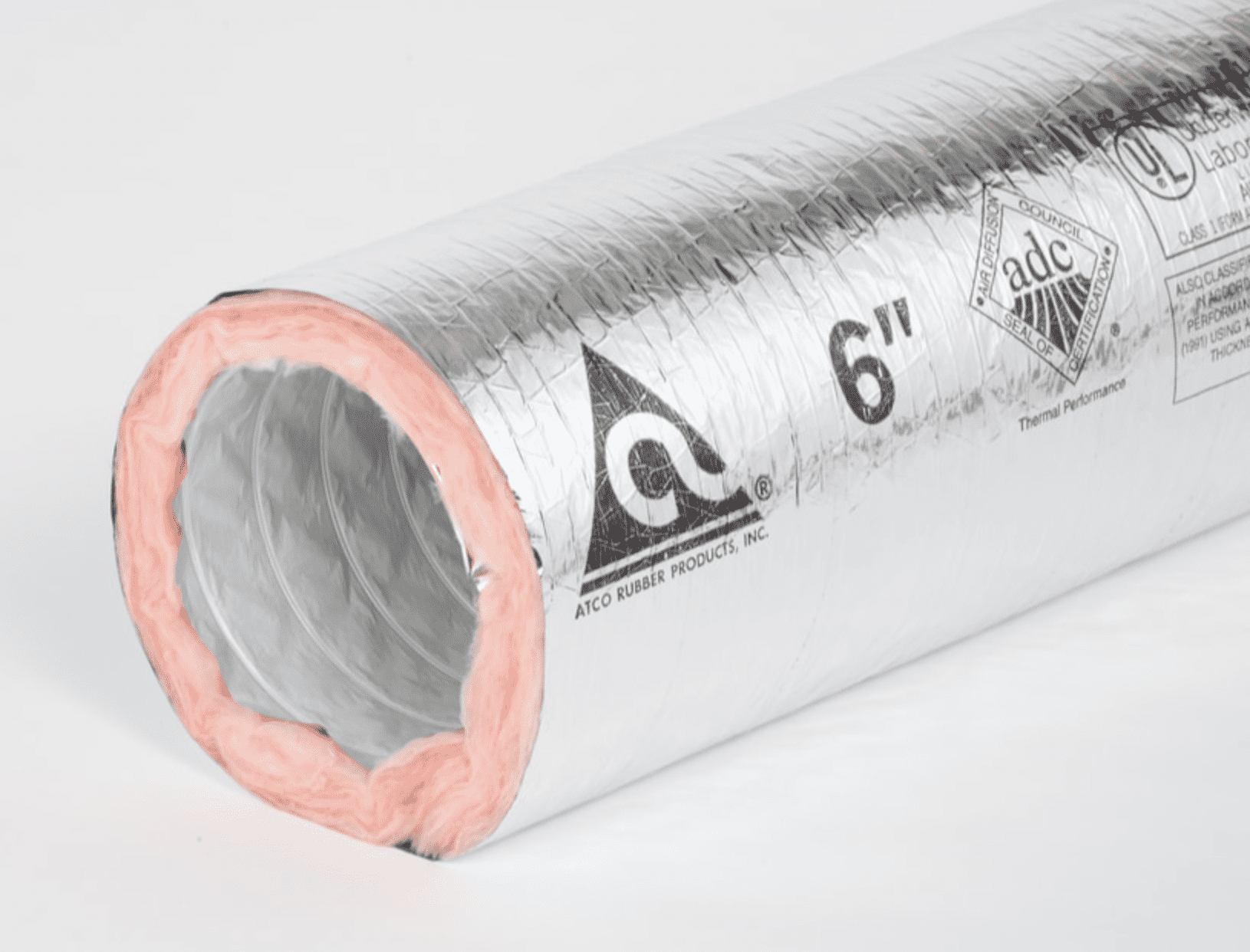

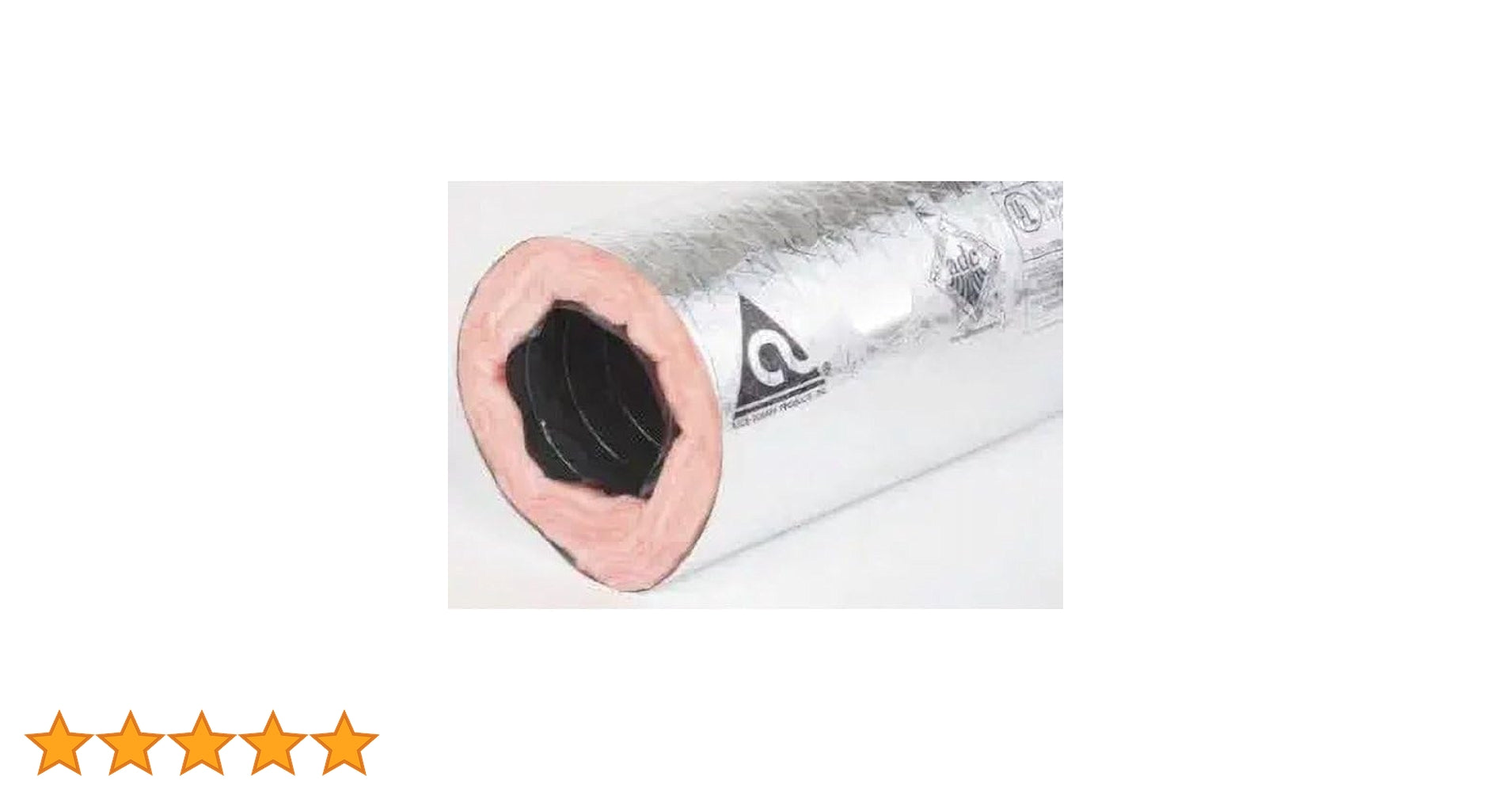

The ATCO Rubber FLEX-UPC036-7BAG is a flexible air duct designed for HVAC systems. It provides a durable solution suited for residential and commercial applications where low-to-medium pressure heating and air conditioning is needed.

• Tri-directional scrim reinforced metallized polyester jacket
• Airtight inner core for low-to-medium operating pressures
• Meets various energy codes and safety standards

Product Highlights

This duct ensures effective air flow and energy efficiency in HVAC systems.

Product Information

Standard Information

• Brand: ATCO RUBBER
• MPN: FLEX-UPC036-7BAG

Technical Specifications

• Maximum Velocity: 5,000 FPM
• Vapor Transmission: .05 perms
• Maximum Operating Temperatures: -20 degrees F to 140 degrees F Continuous (@ maximum pressure), -20 degrees F to 180 degrees F Continuous (@ 2 pos. w.g. max.), -20 degrees F to 250 degrees F Intermittent (@ 1.5 pos. w.g. max.)
• R Value: 6.0
• Flame Spread: Less than 25
• Smoke Developed: Less than 50
