ATCO PRODUCTS 17602514 Insulated Flexible Duct - 14 x 25' R6

Product Description

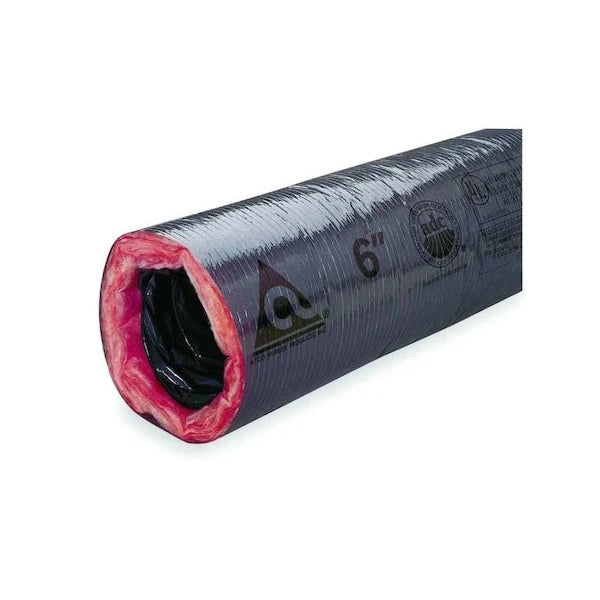

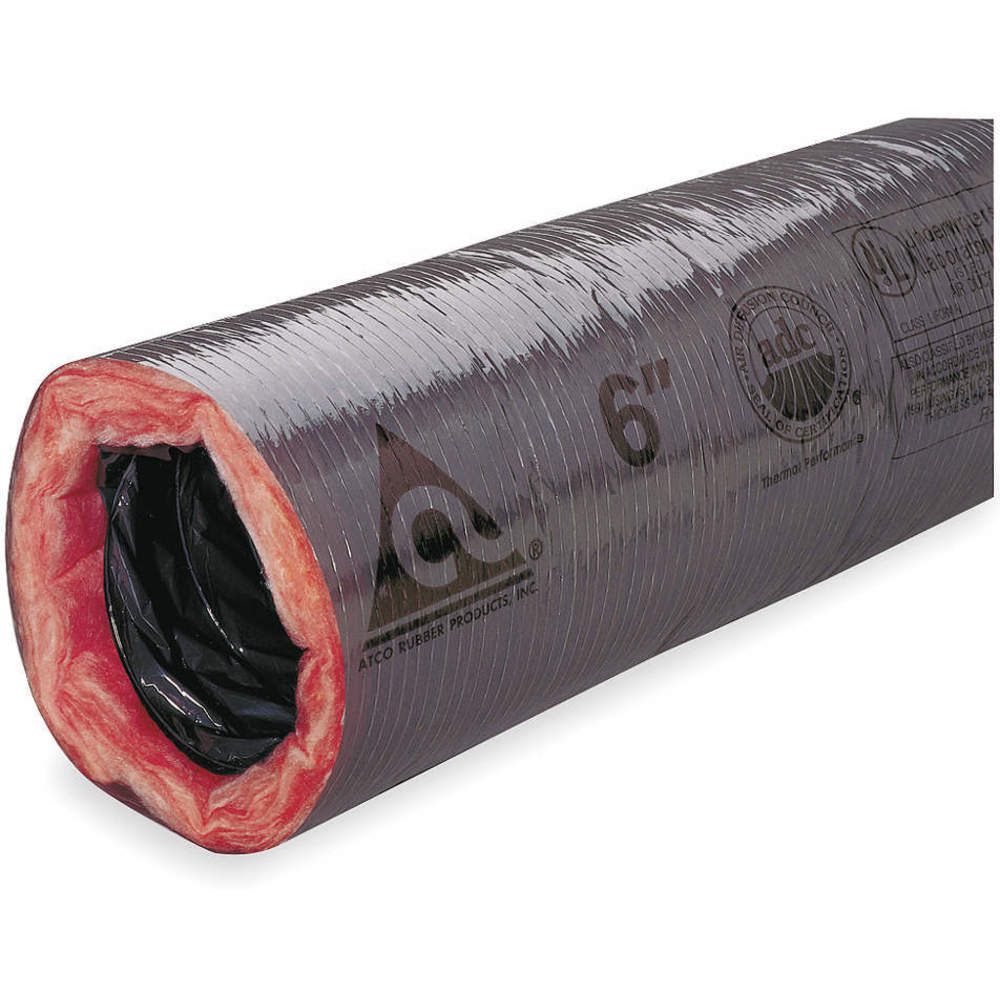

The ATCO PRODUCTS 17602514 is an insulated flexible duct designed for HVAC systems. It has an air-tight inner core made of double-ply polyester, reinforced with a steel wire helix. This duct features fiberglass insulation and is covered with a tri-directional, reinforced gray polyester jacket. It is suitable for low-to-medium operating pressures.

• Air-tight inner core prevents fiberglass erosion into the air stream.
• Encapsulated wire helix prevents unraveling when cut.
• Reinforced polyester jacket is tear and puncture resistant.

Product Highlights

This duct meets UL 181 standards and has a flame spread rating of a maximum of twenty-five and a maximum smoke developed rating of fifty. It is designed to operate effectively within a temperature range from negative twenty degrees Fahrenheit to one hundred forty degrees Fahrenheit.

Product Information

Standard Information

• Brand: ATCO
• MPN: 17602514

Technical Specifications

• Inside Diameter: 14 inches
• Length: 25 feet
• Insulation Value: R6
• Jacket Material: Polyester
• Duct Material: Fiberglass
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 6 in wc
• Maximum Temperature: 180°F
• Minimum Temperature: -20°F
• Fire Rating: Flame Spread: 25 Max, Smoke Developed: 50 Max
• Vapor Transmission: 0.6 Perms
• Jacket Color: Gray
• Compliance: UL 181 Air Duct
• Operating Temperature: -20°F to 140°F (-28.8°C to 60°C)
• Wall Thickness: 2 inches
• Insulation Material: Fiberglass
