ATCO PRODUCTS 17002508 8 x 25' R4.2 Boxed Flexible Duct

Product Description

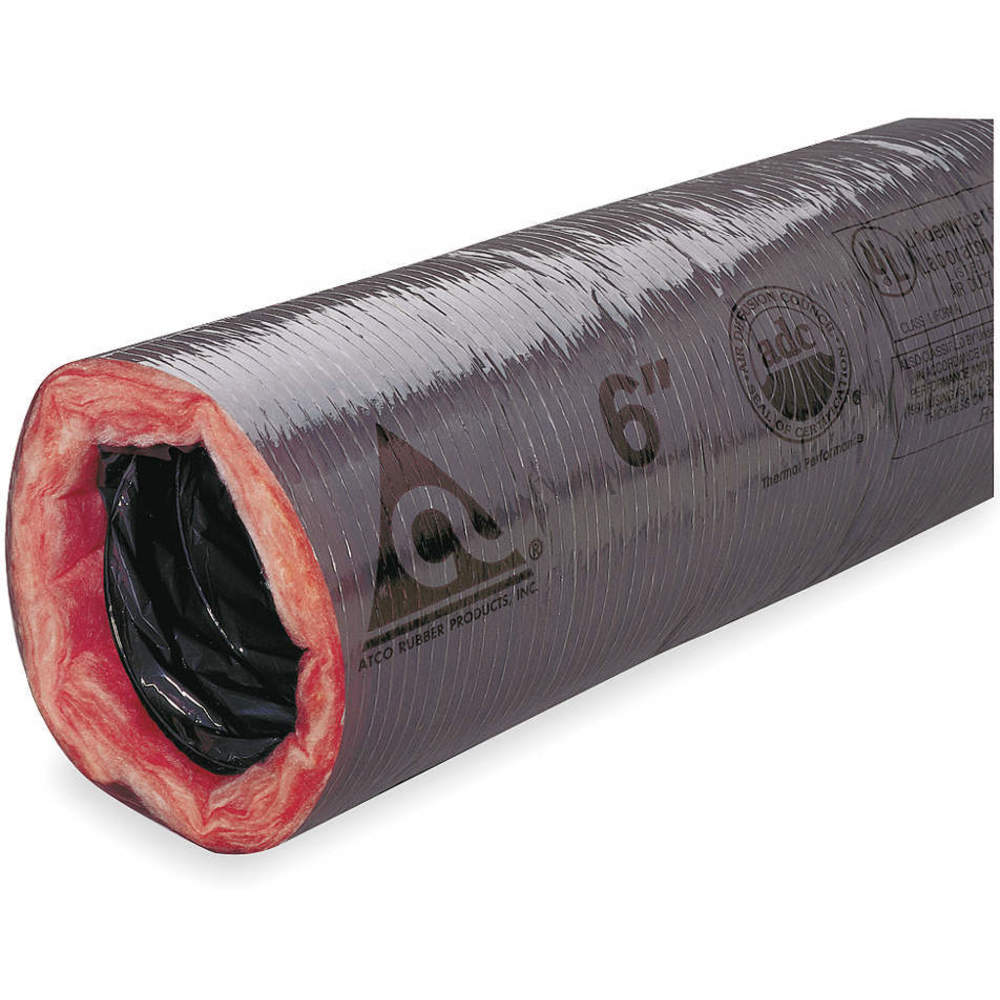

The ATCO PRODUCTS 17002508 is an insulated flexible air duct suitable for use in HVAC systems. This duct measures twenty-five feet in length and is designed with a durable air-tight inner core created from double-laminated polyester around a steel wire helix. The outer layer consists of a tri-directional fiberglass scrim reinforced with a grey polyester jacket. This construction ensures low-to-medium operating pressures.

• Air-tight inner core prevents fiberglass from entering the airflow.
• Encapsulated wire helix supports quick installation and avoids unraveling.
• Grey polyester jacket resists tears and punctures.

Product Highlights

Use this flexible duct for effective air distribution in HVAC systems with features that support compliance and durability.

Product Information

Standard Information

• Brand: ATCO PRODUCTS
• MPN: 17002508

Technical Specifications

• Compliance: UL 181 Air Duct
• Material: Fiberglass, Plastic, Steel, Polyester
• Flex Length: 25 ft
• Inside Diameter: 8 in
• Outside Diameter: 8 in
• Insulated: Yes
• Jacket Color: Gray
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 6 in. wc
• Operating Temperature: -20°F to 140°F (-28.8°C to 60°C)
• R-Value: R4.2
