ATCO PRODUCTS 13102512 Insulated Flexible Duct 12 x 25' R8

Product Description

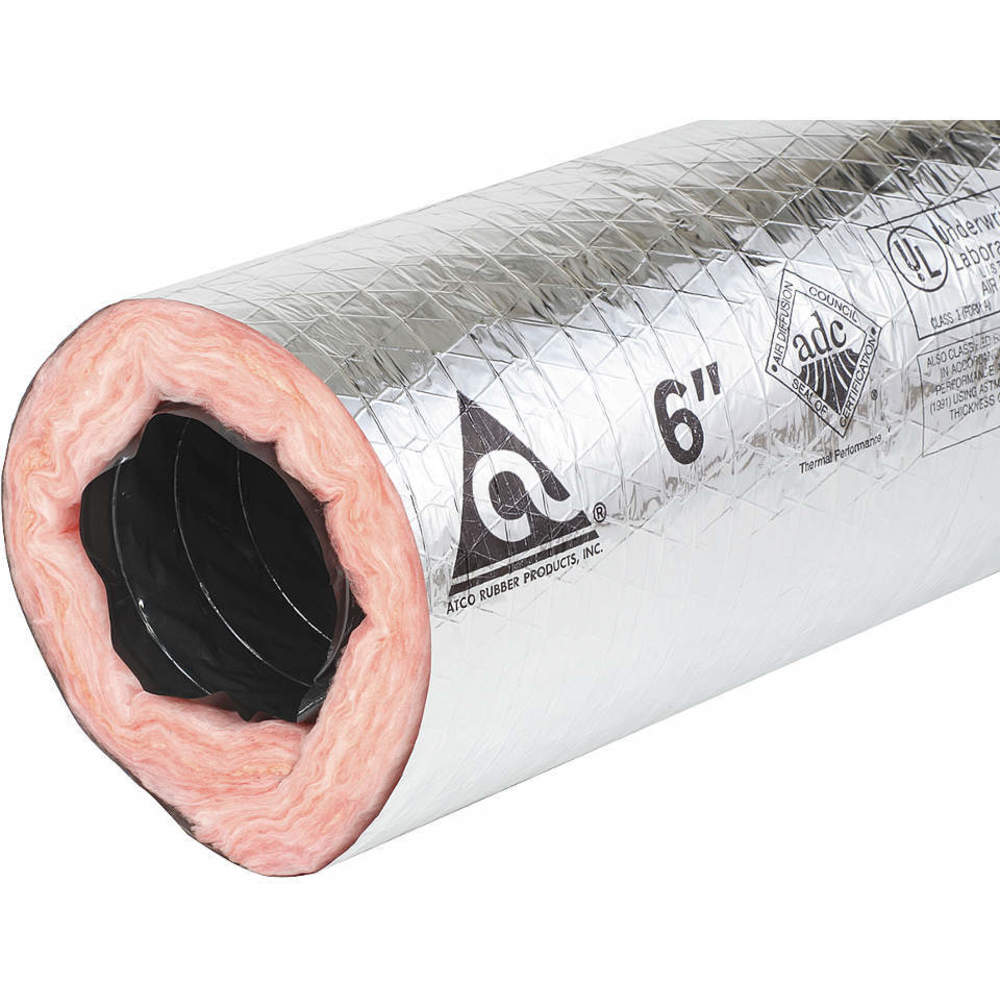

The ATCO PRODUCTS 13102512 is a flexible insulated duct used in HVAC applications. This duct features a double-ply polyester inner core that ensures air-tightness, preventing insulation fibers from entering the airflow. The core is reinforced with a steel wire helix for added strength.

• UL 181 Class 1 listing for safety.
• Compatible with low-to-medium pressure systems.
• Fiberglass insulation and metallized polyester jacket enhance durability.

Product Highlights

This insulated duct is suitable for use in indoor environments and operates effectively at temperatures from negative twenty degrees Fahrenheit to one hundred forty degrees Fahrenheit.

Product Information

Standard Information

• Brand: ATCO PRODUCTS
• MPN: 13102512

Technical Specifications

• Flex Type: Insulated
• Inside Diameter: 12 inches
• Length: 25 feet
• Insulation Material: Fiberglass
• R-Value: R8
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 6 inches wc
• Maximum Temperature: 140 degrees Fahrenheit
• Operating Temperature: -20 degrees Fahrenheit to 140 degrees Fahrenheit
• Jacket Material: Metallized Polyester
• Fire Rating: Flame Spread: 25 max, Smoke Developed: 50 max
• Vapor Transmission: 0.05 Perms
• Compliance: UL 181, NFPA 90A & 90B, IMC, IRC, UMC
• Core Material: Double ply polyester
• Wall Thickness: 2.5 inches
• Environment Type: Indoor
• Flexibility: Flexible
• Interior Surface Texture: Smooth
