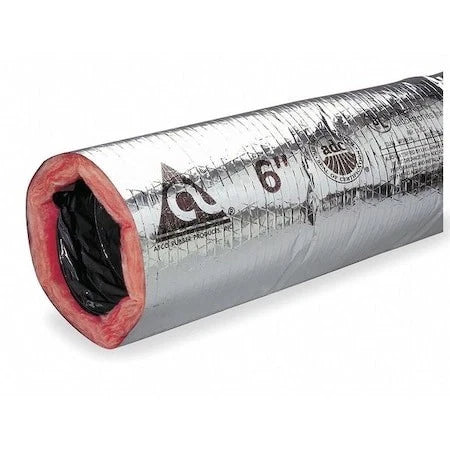

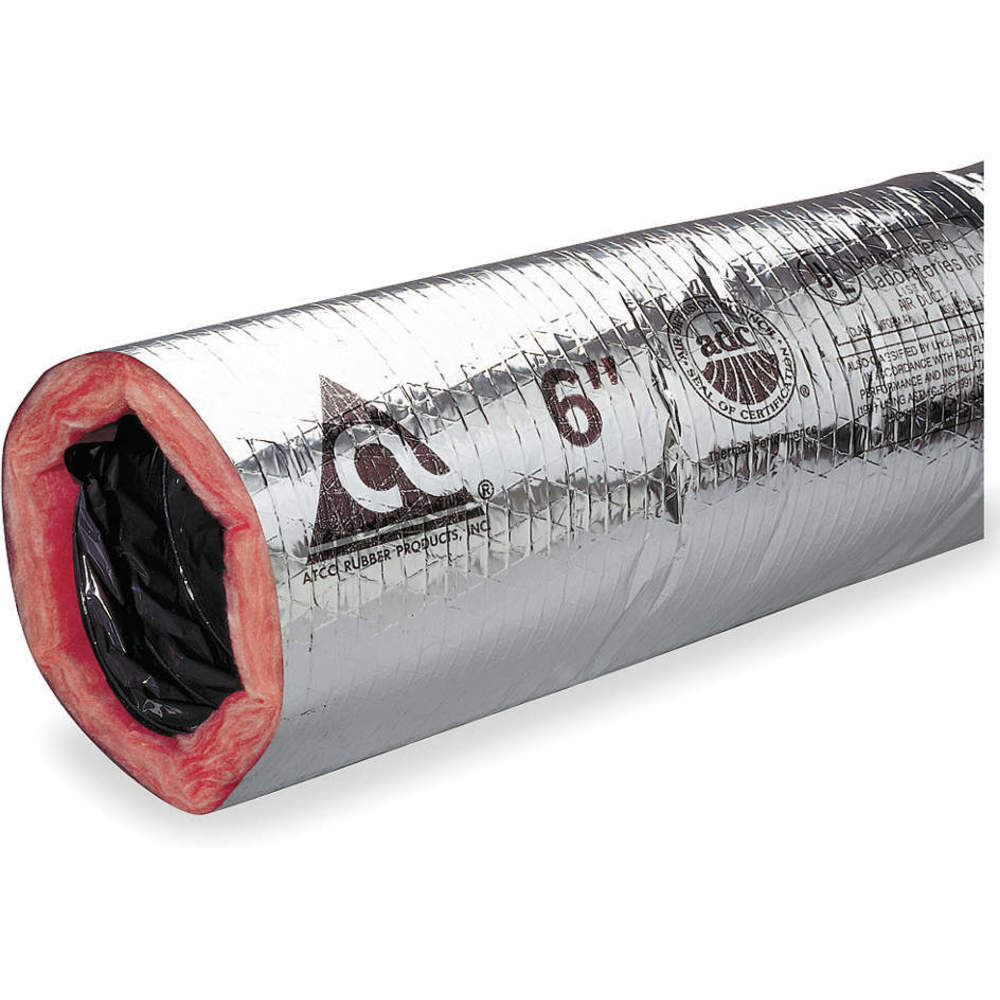

ATCO PRODUCTS 13002512 Insulated Flexible Duct - Silver, 12 inch x 25 ft

Product Description

The ATCO PRODUCTS 13002512 is an insulated flexible duct for indoor HVAC systems. This duct has an air-tight inner core and encapsulated wire helix for durability. The inner surface is smooth, which helps with airflow. Made with fiberglass insulation and a metallized polyester jacket, it provides excellent thermal performance. It can handle low-to-medium operating pressures.

• Air-tight inner core
• Encapsulated wire helix
• Constructed with fiberglass insulation

Product Highlights

This duct is UL 181 Class 1 listed, suitable for various indoor applications, ensuring reliable and efficient ventilation.

Product Information

Standard Information

• Brand: ATCO
• MPN: 13002512

Technical Specifications

• Product Type: Insulated Flexible Duct
• Duct Material: Fiberglass
• Inside Diameter: 12 inches
• Length: 25 ft.
• Insulation Material: Fiberglass
• Insulation Value: R4.2
• Jacket Material: Metallized Polyester
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 6 in. wc
• Maximum Temperature Rating: 180°F
• Minimum Temperature Rating: -20°F
• Vapor Transmission: 0.05%
• Fire Rating: Flame Spread: 25 Max, Smoke Developed: 50 Max
• Color: Silver
• Flexibility: Flexible
• Environment Type: Indoor
• Standards: CALIFORNIA STATE FIRE MARSHAL, CITY OF CHICAGO, CITY OF SAN FRANCISCO, CUL LISTED, DADE COUNTY, FLORIDA, HUD, IMC, IRC, NEW YORK CITY, NFPA 90A & B, UL LISTED, UMC
• Operating Temperature: -20°F to 140°F (-28.8°C to 60°C)
• Material: Polyester/Fiberglass/Metalized Polyester
