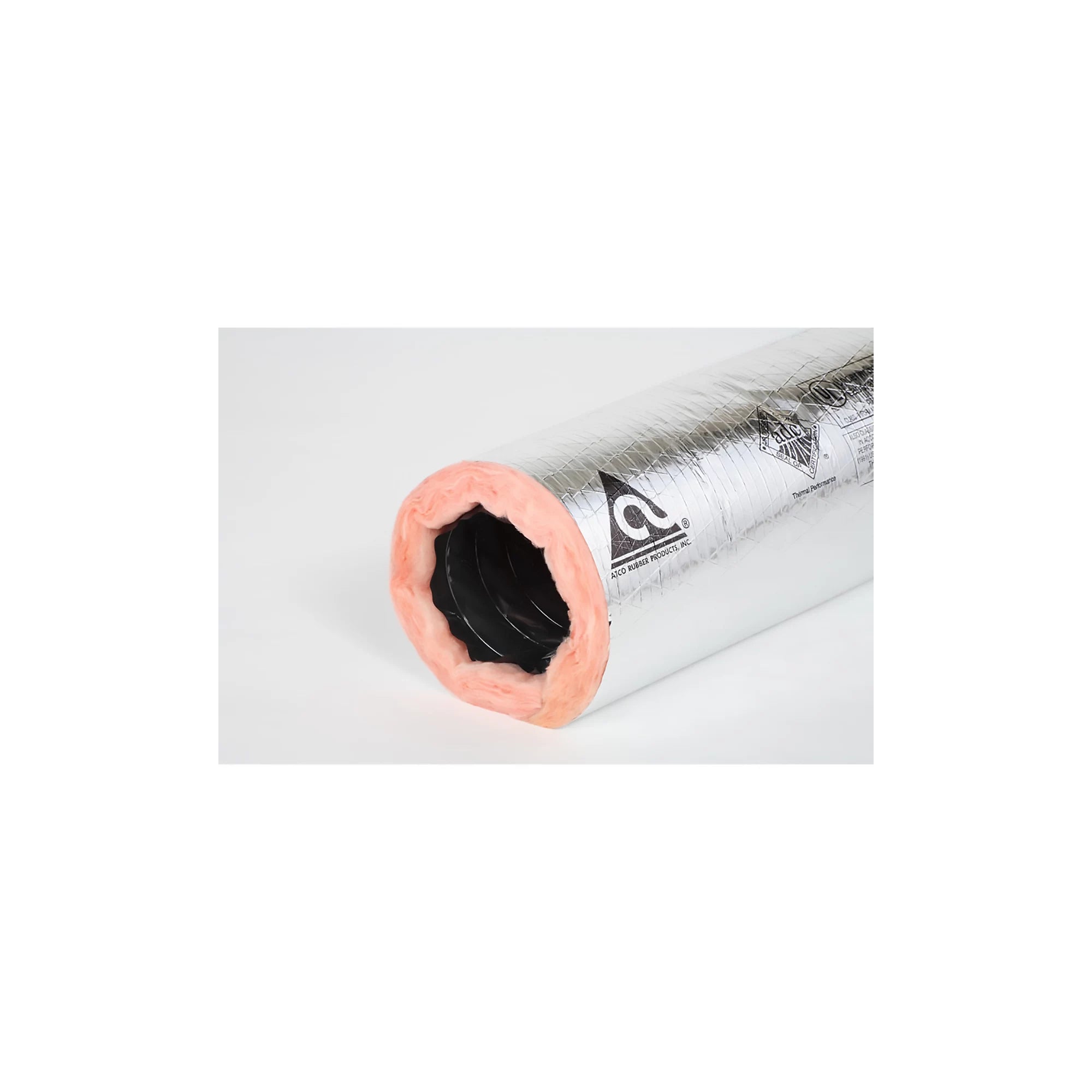

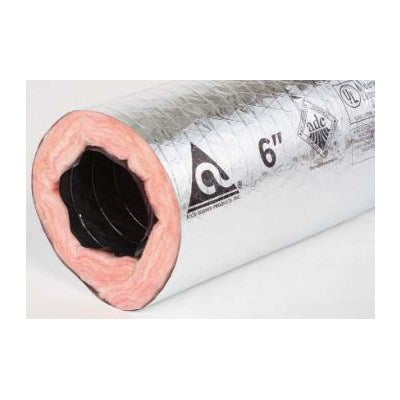

Atco 13102418 031BRF 18 inches x 25 feet R8 Bagged Flexible Duct

Product Description

The ATCO 13102418 is a 25' insulated UL 181 Class 1 Air Duct. Constructed with a tri-directional fiberglass scrim reinforced, metallized polyester outer jacket and an air-tight inner core designed for low-to-medium operating pressures in HVAC systems. It features increased insulation for superior thermal performance.

• Air-tight Inner Core for energy efficiency and prevents fiberglass erosion into the air stream.
• Encapsulated Wire Helix prevents unraveling when cut and allows for quick installation.
• Tough Reinforced Metallized Polyester Jacket is tear and puncture resistant for low maintenance.

Product Highlights

This flexible air duct is energy efficient, easy to install and maintain, and provides excellent thermal characteristics for HVAC systems.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 13102418
• Country of Origin: USA

Technical Specifications

• Brand: ATCO
• Compliance: UL 181, NFPA 90A & 90B, IMC, IRC, UMC 10-1 (ICC ES REPORT NO. ESR-1268), HUD, Cities of Chicago, New York, San Francisco, County of Dade (Florida),
• Composition: Metallized Polyester
• Core Material: Double ply polyester core.
• Fire Rating: Flame Spread: 25 max, Smoke Developed: 50 max
• Flex Length: 25'
• Flex Type: Insulated
• Inside Diameter: 18"
• Insulated: Yes
• Jacket Material: Fiberglass Scrim Reinforced Metalized Polyester
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: 6" W.G. Positive, 4"to 12" diameter, 4" W.G. Positive, 14" to 20" diameter, 3/4" W.G., all diameters
• Maximum Temperature: 250°F (121.11°C)
• Operating Temperature: -20°F to 140°F (-28.8°C to 60°C)
• Package Type: Bag
• Pressure Rating: 6" w.g. pos., 4"-12" dia., 4" w.g. pos., 14"-20" dia., 3/4" w.g., all dia.
• Prop 65: Yes
• R-Value: R8
• Size: 18" x 25'
• UL Listed: Yes
• UPC: 671094363588
• Vapor Transmission: 0.05 Perms
• Country of Origin: USA
• Certifications: Greenguard
• Material: Fiberglass, Plastic, Steel
• Flow Rate: 5000 fpm
• Temperature Rating: -20 to 140 deg F
• Vent Duct Shape: Round
