Atco 031 16 Flexible Foil Duct 16 Inch Diameter

Product Description

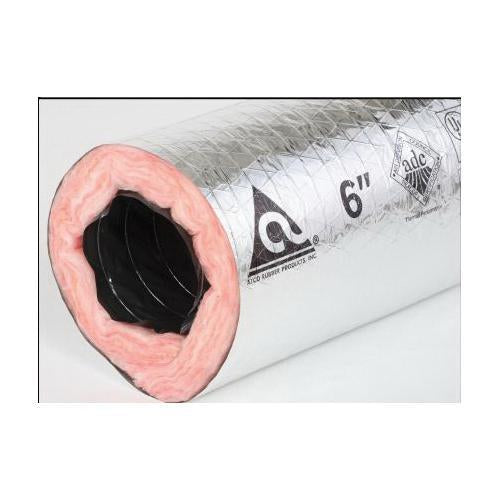

The ATCO 031 16 is a Class 1 insulated flexible foil duct with a metalized polyester jacket, polyester core, fiberglass insulation, and scrim. Designed for HVAC systems, it features an airtight inner core suitable for low to medium operating pressures. The duct has increased insulation for superior thermal performance and is 25 feet in length with a 16-inch diameter.

• Airtight inner core for energy efficiency and prevents fiberglass erosion into the air stream.
• Encapsulated wire helix prevents unraveling when cut, ensuring quick installation.
• Reinforced metallized polyester jacket is tear and puncture-resistant, reducing maintenance.

Product Highlights

This flexible foil duct offers superior thermal performance and durability for HVAC systems, ensuring energy efficiency and ease of installation.

Product Information

Standard Information

• Brand: ATCO
• Manufacturer Part Number: 031 16

Technical Specifications

• R-Value: R8
• Series: 30 Series
• Temperature Rating: -20 to 140 deg F
• Velocity Rating: 5000 fpm
• Length: 25 ft
• Diameter: 16 in
• Pressure Rating: 4 in-WC Positive, 3/4 in-WC Negative
• Material: Metalized Polyester/Polyester/Fiberglass/Scrim
