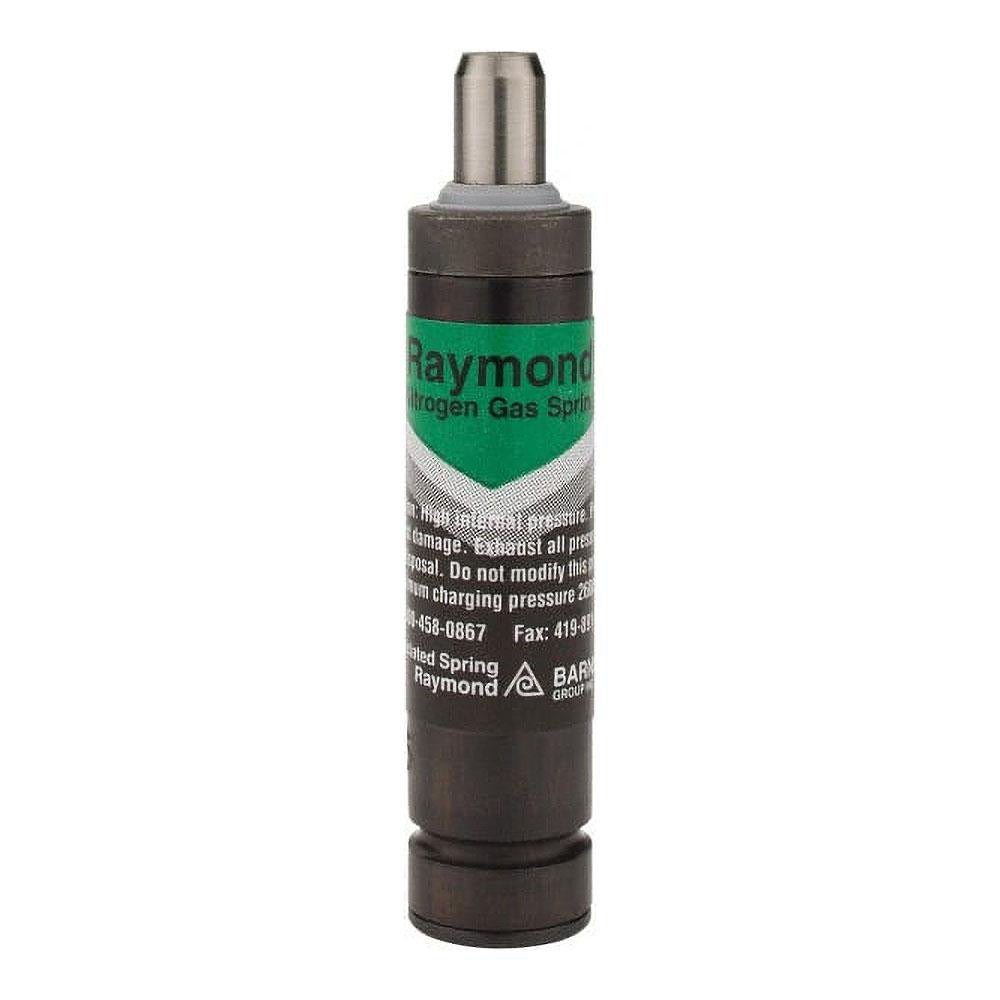

Associated Spring Raymond R12-015 Bl Nitrogen Gas Spring

Product Description

The ASSOCIATED SPRING RAYMOND R12-015 BL is a compact nitrogen gas spring designed for die, mold, and fixture applications requiring consistent, controlled force in a small footprint. With a body diameter of 0.472 inches and a maximum stroke of 0.59 inches, this spring delivers an initial force of 56 lbf and a full-stroke force of 81 lbf, charged at 1,560 psi. The blue color coding aids quick identification on tooling setups. At an overall length of 2.83 inches and a body length of 2.17 inches, it fits space-constrained tooling environments. Licensed tool and die makers and machine builders are the primary installers.

This nitrogen gas spring is suited for stamping dies, progressive dies, injection molds, and precision fixtures in both light industrial and production environments. The M6 mounting hole thread size allows straightforward integration into standard tooling plates. Its 0.236-inch rod diameter and 12 mm body diameter conform to common compact-series gas spring standards, making it a practical replacement or addition in tooling assemblies where consistent blank-holding or stripping force is required.

Key Features

• Full-stroke force of 81 lbf with an initial force of 56 lbf for predictable, progressive load delivery
• 1,560 psi factory nitrogen charge - ready to install without field charging equipment
• 0.59 inch maximum stroke in a 2.83 inch overall length for compact tooling integration
• M6 mounting thread for direct installation into standard tooling plates
• Blue color coding for quick identification and force-range sorting on multi-spring tooling setups
• Operating temperature range of 0 degrees F to 176 degrees F covers typical production shop conditions

Compatibility

Designed as a compact nitrogen gas spring replacement or addition for stamping dies, injection molds, and precision fixtures requiring a 12 mm body diameter, 15 mm stroke, and M6 mounting thread.

Installation Notes

Installation is typically performed by licensed tool and die makers or mechanical engineers during die build or maintenance. Depressurize or confirm the spring is at rest before disassembly from any live tooling assembly. Use appropriate thread engagement depth for the M6 mounting hole and avoid side-loading the rod beyond the rated stroke. Never attempt to recharge or disassemble the nitrogen chamber in the field - these units are factory sealed.
