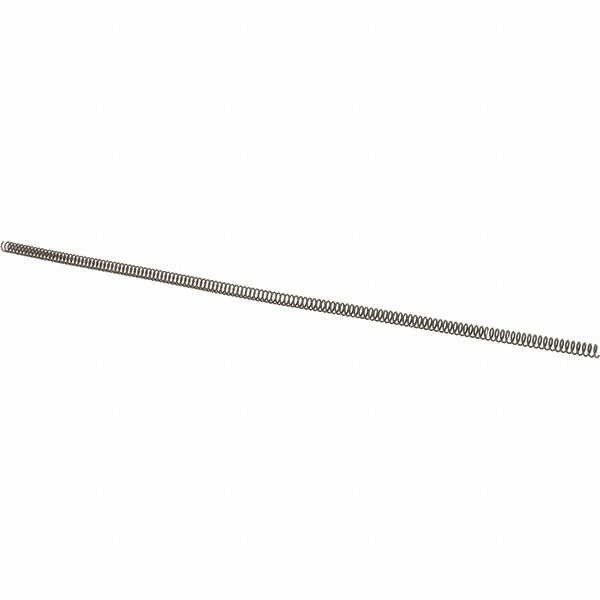

Associated Spring Raymond 107032000 Die Spring

Product Description

The ASSOCIATED SPRING RAYMOND 107032000 is a die spring designed for use in tooling, stamping, and press applications where consistent force and reliable cycling are required. Die springs provide controlled compression resistance between die components, maintaining proper clearance and protecting tooling from impact damage during press operations. This part ships as a single-unit quantity and is handled by tooling technicians, maintenance mechanics, and die setters working in industrial fabrication environments.

This die spring is suited for installation in stamping dies, punch presses, and similar metal fabrication tooling setups. It is applicable in both light and heavy industrial settings where repeatable spring force and dimensional consistency are critical to die performance and part quality. Typical installations involve standard die plates and guided spring pockets found in conventional tooling assemblies.

Key Features

• Engineered for use in die and stamping tooling applications
• Designed to deliver consistent compression force across repeated press cycles
• Single-unit packaging supports targeted replacement without excess inventory
• UNSPSC Code 31161905 classification confirms product category as a mechanical spring

Compatibility

Designed as an OEM-style replacement die spring for use in standard industrial stamping and press tooling assemblies.

Installation Notes

Die spring replacement is typically performed by qualified tooling technicians or maintenance mechanics. Always de-energize and lock out the press before accessing die components. Ensure the spring pocket dimensions match the replacement spring before installation to avoid misalignment or premature failure. Follow applicable shop safety procedures and equipment manufacturer guidelines during all die service work.
