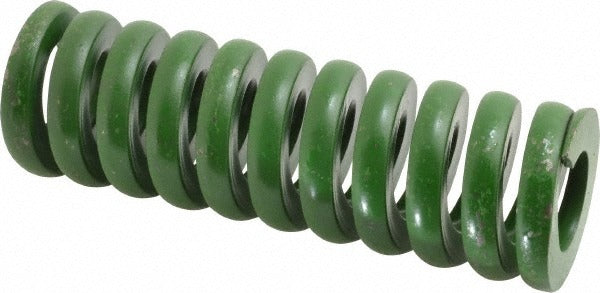

Associated Spring Raymond 106-824 Die Spring Green

Product Description

The ASSOCIATED SPRING RAYMOND 106-824 is a heavy-duty die spring designed for use in stamping dies, punch presses, and industrial tooling applications. With a 2-inch hole diameter and a 1-inch rod diameter, this spring fits standard die sets and guided spring assemblies. The 6-inch free length and trapezoidal wire cross-section provide high load capacity and resistance to fatigue under repetitive cycling. A maximum deflection load of 2,124 pounds and a maximum deflection of 1.5 inches place this unit in the heavy-load category, suitable for demanding press operations and precision tooling environments. It is installed by tool and die makers, maintenance machinists, and industrial equipment technicians.

This die spring is identified by the green color code, which designates the heavy-load series per standard die spring classification systems. It is intended for use in guided die spring applications where a 2-inch outer diameter pocket or bore is present and a 1-inch guide rod is used. Typical installations include metal stamping dies, injection mold tooling, and industrial press assemblies requiring consistent, repeatable force over long cycle counts. The trapezoidal wire profile maximizes wire cross-sectional area within the spring body, supporting higher load ratings compared to round-wire springs of equivalent envelope size.

Key Features

• Green color code indicating heavy-load series classification
• 2,124 pounds maximum deflection load for high-force tooling applications
• 1.5 inches maximum deflection with a spring rate of 1,473 pounds per inch
• Trapezoidal wire shape maximizes load capacity within a compact envelope
• Chromium alloy steel construction for fatigue resistance and long service life
• Manufactured to ISO 9001:2008 and ISO/TS 16949:2009 quality standards

Compatibility

Designed as an OEM-style replacement or standard component for guided die spring assemblies requiring a 2-inch outer diameter, 1-inch rod diameter, and 6-inch free length in the heavy-load green series.

Installation Notes

Installation is performed by qualified tool and die technicians or maintenance machinists. Always de-energize and lock out the press or tooling equipment before removing or installing die springs. Ensure the guide rod and pocket bore are clean and within dimensional tolerance before seating the spring. Do not exceed the rated maximum deflection of 1.5 inches, as over-compression will reduce fatigue life and may cause premature failure.
