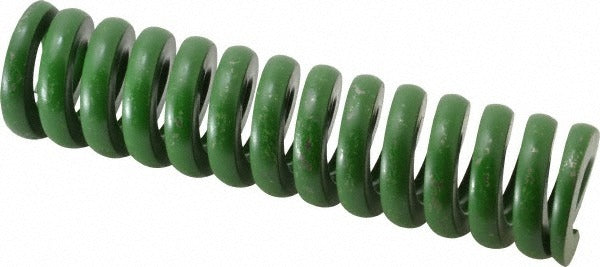

Associated Spring Raymond 106-724 Die Spring 6 in Green

Product Description

The ASSOCIATED SPRING RAYMOND 106-724 is a heavy-duty die spring engineered for use in stamping dies, punch tooling, and industrial press applications. It features a 1-1/2 inch hole diameter, a 3/4 inch rod diameter, and a free length of 6 inches. The trapezoidal wire cross-section provides a higher load capacity compared to round-wire springs of equivalent size. Rated to a maximum deflection load of 1,656 pounds with a maximum deflection of 1.5 inches, this spring delivers consistent force output across its operating range. Chromium alloy steel construction ensures durability under high-cycle fatigue conditions common in production tooling environments.

This die spring is suited for use in metal stamping dies, injection mold tooling, and heavy-duty mechanical press fixtures in industrial and manufacturing settings. The green color designation indicates a heavy load category per standard die spring classifications. Toolmakers, die setters, and maintenance machinists working in fabrication shops and production facilities are the primary installers and users of this component.

Key Features

• 1-1/2 inch hole diameter and 3/4 inch rod diameter for standard die set fitment
• 6 inch free length supports a broad range of tooling configurations
• Maximum deflection load of 1,656 pounds for heavy-duty press applications
• 1.5 inch maximum deflection with a spring rate of 1,205 pounds per inch
• Trapezoidal wire shape increases load density versus round-wire alternatives
• Chromium alloy steel construction for extended fatigue life in high-cycle tooling

Compatibility

Designed as a standard-specification die spring for use in heavy-load tooling applications requiring a 1-1/2 inch hole diameter, 3/4 inch rod diameter, and 6 inch free length in the green heavy-duty load category.

Installation Notes

Die springs are installed by toolmakers or die maintenance technicians during die set assembly or rebuild. Always relieve all press pressure and lock out the press before removing or replacing die springs. Inspect the mating pocket diameter and guide rod diameter against the spring specifications before installation to ensure proper fit and prevent side-loading. Do not compress the spring beyond its rated maximum deflection of 1.5 inches, as overcompression will accelerate fatigue failure.
