Associated Spring Raymond 106-624 Die Spring 840 Lb

Product Description

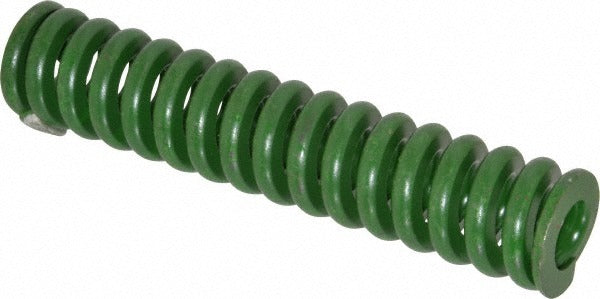

The ASSOCIATED SPRING RAYMOND 106-624 is an extra heavy-duty die spring designed for high-load tooling and press applications. Built from chromium alloy steel with a trapezoidal wire profile, it delivers a maximum deflection load of 840 pounds and allows up to 1.5 inches of maximum deflection. The spring features a 1.25-inch hole diameter, a 0.625-inch rod diameter, and a 6-inch free length. The green color coding follows the industry-standard convention identifying it as an extra heavy-duty spring. This part is typically installed by tool and die makers, machine maintenance technicians, and industrial fabricators working with stamping and forming presses.

This die spring is suited for use in stamping dies, injection molds, punching tools, and other precision tooling assemblies that require consistent, high-cycle compression performance. The extra heavy-duty duty rating makes it appropriate for demanding production environments where load capacity and fatigue resistance are critical. It fits standard die sets where a 1.25-inch hole diameter and 0.625-inch rod diameter configuration is specified.

Key Features

• Extra heavy-duty duty rating with a maximum deflection load of 840 pounds
• Trapezoidal wire shape provides higher load capacity compared to round wire springs of equivalent size
• Chromium alloy steel construction for strength and fatigue resistance under repeated cycling
• 6-inch free length with up to 1.5 inches of maximum deflection travel
• Green color coding for quick identification as an extra heavy-duty spring per industry convention
• 1.25-inch hole diameter and 0.625-inch rod diameter for straightforward fitment in standard die sets

Compatibility

Designed as an OEM-style replacement or direct-fit die spring for stamping dies, press tooling, and mold assemblies specifying a 1.25-inch hole diameter, 0.625-inch rod diameter, and 6-inch free length in an extra heavy-duty configuration.

Installation Notes

Installation should be performed by qualified tool and die technicians or industrial maintenance personnel. Always de-energize and lock out the press or tooling machine before removing or installing die springs. Inspect the mating die set bores and rod for wear, burrs, or misalignment before seating the spring, as off-axis loading accelerates fatigue. Do not compress the spring beyond the rated maximum deflection of 1.5 inches.
