Associated Spring Raymond 106-510 Die Spring Extra Heavy Duty

Product Description

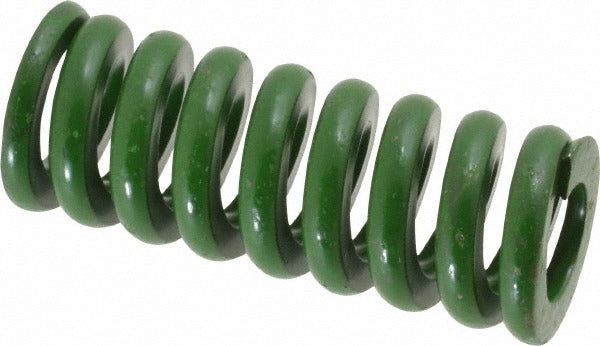

The ASSOCIATED SPRING RAYMOND 106-510 is an extra heavy-duty die spring engineered for high-load tooling and press applications. It features a 1-inch hole diameter, a 0.5-inch rod diameter, and a free length of 2.5 inches. Constructed from chromium alloy steel with a trapezoidal wire cross-section, the 106-510 delivers a spring rate of 896 pounds per inch and handles a maximum deflection load of 560 pounds at 0.63 inches of travel. The green color coding identifies it as an extra heavy-duty unit per standard die spring classification. Licensed HVAC, tooling, and industrial maintenance professionals install this part in stamping dies, punch presses, and other precision tooling assemblies.

This die spring is suited for use in stamping and metal-forming dies, plastic injection molds, and similar high-cycle industrial tooling setups. Its compact 2.5-inch free length fits standard die set pockets designed for 1-inch bore and 0.5-inch rod configurations. The extra heavy-duty duty rating makes it appropriate for applications where standard or heavy-duty springs lack sufficient load capacity. Industrial maintenance technicians and tool-and-die professionals are the primary installers in production and job shop environments.

Key Features

• Extra heavy-duty duty rating identified by standard green color coding
• Trapezoidal wire cross-section maximizes load capacity within a compact envelope
• 560-pound maximum deflection load with 0.63 inches of maximum travel
• Spring rate of 896 pounds per inch for predictable, consistent force delivery
• Chromium alloy steel construction for fatigue resistance in high-cycle applications
• ISO 9001:2008 and ISO/TS 16949:2009 certified manufacturing standards

Compatibility

Designed as a replacement or original-equipment die spring for stamping dies, punch press tooling, and industrial mold assemblies requiring a 1-inch bore, 0.5-inch rod diameter, and 2.5-inch free length in an extra heavy-duty load class.

Installation Notes

Installation is typically performed by tool-and-die technicians or industrial maintenance personnel. De-energize and lockout the press or tooling machine before removing or installing die springs. Inspect the mating rod and bore surfaces for wear or burrs that could damage the spring coils during operation. Do not compress the spring beyond its rated maximum deflection of 0.63 inches, as overtravel will reduce service life and may cause premature failure.
