Associated Spring Raymond 106-416 Die Spring Extra Heavy-duty

Product Description

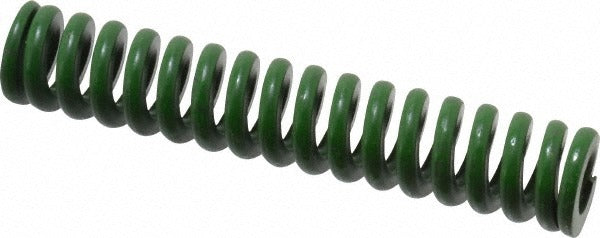

The ASSOCIATED SPRING RAYMOND 106-416 is an extra heavy-duty die spring designed for use in stamping dies, punch presses, and industrial tooling applications. It features a trapezoidal wire cross-section, which provides a higher load capacity in a compact envelope compared to round-wire springs. With a 3/4 inch hole diameter, 3/8 inch rod diameter, and a 4 inch free length, this spring delivers a maximum deflection load of 300 pounds at 1 inch of travel. The green color coding follows the ISO standard convention for extra heavy-duty die springs, making identification quick and reliable in tool room environments.

This spring is intended for use in metal stamping dies, forming tools, injection mold assemblies, and other precision industrial tooling where consistent, high-load spring force is required. It is suited for both OEM tooling builds and maintenance replacement in production shop environments. Machinists, tool and die makers, and maintenance technicians working with progressive dies, compound dies, or single-station press tooling will find this spring a direct-fit component in standard guided spring pockets.

Key Features

• Extra heavy-duty duty rating with 300 pound maximum deflection load
• Trapezoidal wire shape delivers higher load density than round-wire designs
• Green color coding indicates extra heavy-duty classification per ISO die spring standards
• 3/4 inch hole diameter and 3/8 inch rod diameter for standard guided pocket installations
• Chromium alloy steel construction for durability under cyclic compressive loads
• Manufactured under ISO 9001:2008 and ISO/TS 16949:2009 certified quality systems

Compatibility

Designed as a standard replacement or OEM-specification die spring for guided spring pockets in stamping dies, punch press tooling, and injection mold assemblies requiring an extra heavy-duty green-series spring with 3/4 inch hole diameter and 3/8 inch rod diameter.

Installation Notes

Die springs should be installed by qualified tool and die makers or maintenance technicians familiar with press tooling. Always de-energize and lock out the press before performing any die maintenance or spring replacement. Ensure the rod and hole diameters of the pocket match the spring specifications to prevent buckling or misalignment under load. Do not exceed the rated maximum deflection of 1 inch during operation, as over-compression will shorten spring life significantly.
