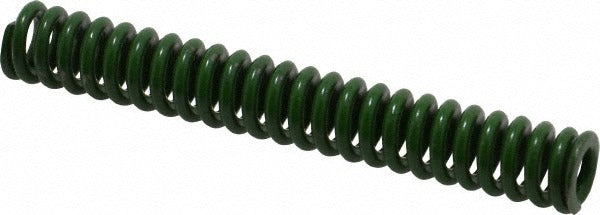

Associated Spring Raymond 106-214 Die Spring Green

Product Description

The ASSOCIATED SPRING RAYMOND 106-214 is a heavy-duty die spring engineered for use in metal stamping dies, punch presses, and industrial tooling applications. It features a trapezoidal wire cross-section that delivers higher load capacity and longer fatigue life compared to standard round-wire springs. The spring has a 0.5-inch hole diameter, a 3.5-inch free length, and a maximum deflection load of 70 pounds at 0.88 inches of travel. The green color coding follows the ISO standard designation for heavy load class. At a spring rate of 80 pounds per inch, this unit provides consistent, predictable force throughout its compression cycle. Licensed toolmakers and industrial maintenance technicians are the primary installers.

This die spring is suited for light to heavy stamping and forming tooling in both production and maintenance shop environments. It fits applications where a 0.5-inch hole diameter and a 9/32-inch rod diameter are specified by the die design. The compact 3.5-inch free length makes it practical for die sets with moderate shut height requirements. It is manufactured from chromium alloy steel to handle repeated cyclic loading without significant set or fatigue failure under normal operating conditions.

Key Features

• Trapezoidal wire shape increases load density and fatigue resistance versus round-wire designs
• Green color coding identifies heavy load class per ISO die spring standards
• Chromium alloy steel construction for high-cycle durability under compressive loads
• Spring rate of 80 pounds per inch provides predictable, linear force output
• Maximum deflection load of 70 pounds at 0.88 inches of travel
• Manufactured under ISO 9001:2008 and ISO/TS 16949:2009 certified quality systems

Compatibility

Designed as a direct-fit replacement or new installation die spring for tooling applications specifying a 0.5-inch hole diameter, 9/32-inch rod diameter, and 3.5-inch free length in the heavy load (green) class.

Installation Notes

Installation is performed by toolmakers or die maintenance technicians during die build or service. Always relieve all press tonnage and lockout the press before accessing the die set. Confirm that the mating rod diameter and pocket diameter in the die plate match the spring specifications before seating the spring. Do not compress the spring beyond its rated maximum deflection to avoid permanent set or premature failure.
