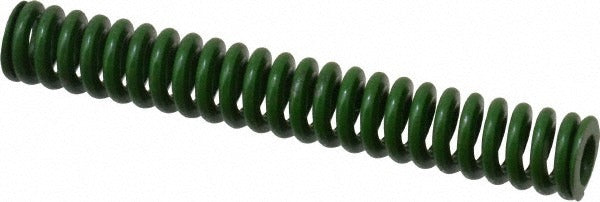

Associated Spring Raymond 106-110 Die Spring Green

Product Description

The ASSOCIATED SPRING RAYMOND 106-110 is a heavy-duty die spring designed for use in metal stamping, pressing, and tooling applications where consistent force and long service life are required. Built from chromium alloy steel with a trapezoidal wire shape, this spring delivers a maximum load of 43.8 pounds at full deflection and a spring rate of 75 pounds per inch. The green color coding indicates load class per industry convention, making identification fast and straightforward in multi-spring tool setups. Weighing just 0.04 pounds, it is a compact, precision-engineered component suited for installation by toolmakers, die setters, and maintenance technicians.

This die spring is intended for use in industrial press tooling, stamping dies, jigs, and fixtures where a 0.375 inch hole diameter and 0.1875 inch rod diameter configuration is required. Its 2.5 inch free length and 0.63 inch maximum deflection make it appropriate for applications with moderate stroke lengths. The green load-class rating is standard across ISO-compliant tooling environments, and the spring is well-suited for both new die builds and replacement of worn or fatigued springs in existing assemblies.

Key Features

• Chromium alloy steel construction for high fatigue resistance and durability under cyclic loading
• Trapezoidal wire cross-section provides higher load capacity relative to round-wire springs of comparable size
• Maximum deflection load of 43.8 pounds with a linear spring rate of 75 pounds per inch
• Green color coding for quick visual identification of load class in multi-spring tooling setups
• Compact 0.04 pound weight with a 2.5 inch free length suited for space-constrained die designs
• Manufactured to ANAB-accredited, ISO 9001:2008, ISO/TS 16949:2009, and TUV Rheinland standards

Compatibility

Designed as a replacement or new-build die spring for press tooling, stamping dies, and fixturing applications requiring a 0.375 inch hole diameter, 0.1875 inch rod diameter, and 2.5 inch free length in the green load class.

Installation Notes

Die springs should be installed by qualified toolmakers or die maintenance technicians familiar with press tooling safety procedures. Always de-energize and lock out the press before accessing the die set. Ensure the spring is seated squarely against the retainer and that the rod diameter clearance matches the 0.1875 inch specification to prevent lateral loading. Do not compress the spring beyond its rated maximum deflection of 0.63 inches, as overcompression accelerates fatigue and can cause premature failure.
