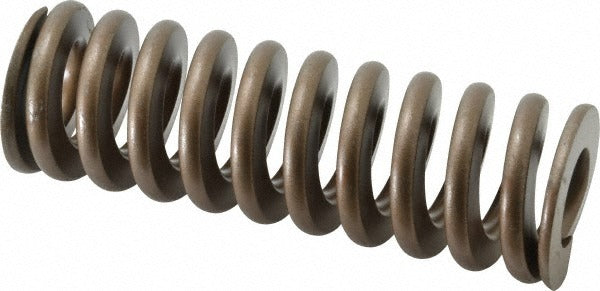

Associated Spring Raymond 105-824 Die Spring 2in Gold

Product Description

The ASSOCIATED SPRING RAYMOND 105-824 is a heavy-duty die spring designed for use in stamping dies, press tooling, and industrial machinery applications where controlled compression force is required. Built from chromium alloy steel with a trapezoidal wire cross-section, this spring delivers a rated spring rate of 977 pounds per inch and a maximum deflection load of 1,692 pounds. It carries a gold color coding, which indicates a heavy load classification within the standard die spring color-code system. Licensed HVAC and industrial mechanics, toolmakers, and maintenance professionals working with press equipment or die sets are the primary installers.

This die spring is suited for high-cycle stamping and forming operations where consistent force and fatigue resistance are critical. The 2 inch hole diameter accepts standard die set guide posts, and the 1 inch rod diameter clearance keeps the spring properly aligned under compression. The 6 inch free length provides adequate working stroke for deep-draw tooling setups. It is applicable in both light industrial and heavy production press environments.

Key Features

• Gold color coding designates heavy load classification for quick identification during die maintenance
• Trapezoidal wire cross-section increases load capacity and fatigue life compared to round wire profiles
• 977 pounds per inch spring rate provides firm, predictable resistance across the deflection range
• Maximum deflection of 1.8 inches supports press strokes without exceeding the spring working limit
• Chromium alloy steel construction resists fatigue and maintains consistent spring rate over extended cycles
• Manufactured to ISO 9001:2008 and ISO/TS 16949:2009 quality standards with TUV Rheinland registration

Compatibility

Designed as an OEM-style replacement or standard fitment die spring for industrial stamping dies and press tooling requiring a 2 inch hole diameter, 1 inch rod diameter, and 6 inch free length heavy-load spring.

Installation Notes
