Associated Spring Raymond 105-632 Die Spring Gold

Product Description

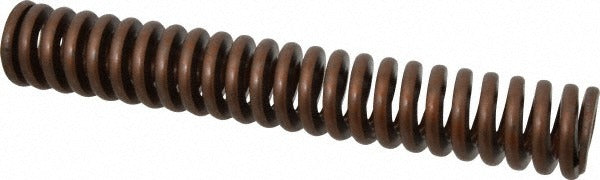

The ASSOCIATED SPRING RAYMOND 105-632 is a heavy-duty die spring designed for use in stamping dies, press tooling, and other industrial spring applications requiring consistent, high-cycle compression force. It features a 1-1/4 inch hole diameter, a 5/8 inch rod diameter, and an 8 inch free length. The trapezoidal wire shape increases the contact surface area compared to round-wire springs, which improves load capacity and fatigue life. With a maximum deflection load of 787.2 pounds and a spring rate of 328 pounds per inch, this unit is rated for heavy-duty service in demanding production tooling environments. It ships individually and is manufactured to ISO 9001:2008 standards.

This die spring is used in metal stamping dies, injection molds, punch press assemblies, and similar tooling applications where controlled, repeatable compression is required. The gold color coding indicates a heavy load class under standard die spring classification systems, helping toolmakers and maintenance technicians quickly identify the correct replacement during a die change or press teardown. It is suited for both original tooling builds and direct replacement in existing die sets. Installation is performed by toolmakers, die setters, and press maintenance personnel in industrial and manufacturing environments.

Key Features

• Heavy-duty gold color class rated for high-load compression applications
• Trapezoidal wire shape increases load capacity and extends fatigue life versus round-wire alternatives
• 787.2 pound maximum deflection load with 2.4 inch maximum deflection
• 328 pound per inch spring rate provides consistent, predictable force output
• Chromium alloy steel construction for durability in high-cycle tooling environments
• Manufactured under ISO 9001:2008 and ISO/TS 16949:2009 certified quality systems

Compatibility

Designed as a standard die spring replacement for heavy-load tooling applications requiring a 1-1/4 inch hole diameter, 5/8 inch rod diameter, and 8 inch free length in the gold heavy-duty load class.

Installation Notes

Die springs are installed and replaced by trained toolmakers or die maintenance technicians. Before servicing a die or press assembly, verify that the press is fully de-energized, locked out, and blocked to prevent accidental ram movement. Inspect the rod diameter and hole diameter of the existing pocket before installation to confirm fit. Never compress a die spring beyond its rated maximum deflection, as over-compression reduces fatigue life and can cause premature failure.
