Associated Spring Raymond 105-110 Die Spring Heavy-duty

Product Description

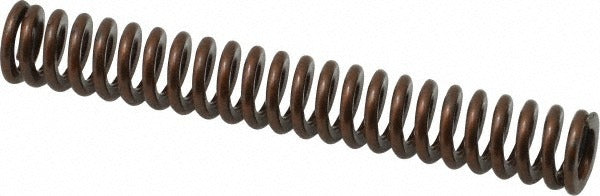

The ASSOCIATED SPRING RAYMOND 105-110 is a heavy-duty die spring engineered for use in stamping dies, punch press tooling, and precision industrial fixtures. Built from chromium alloy steel with a trapezoidal wire cross-section, it delivers a spring rate of 50.00 pounds per inch and handles a maximum deflection load of 41.3 pounds. The 0.375-inch hole diameter accepts a 0.1875-inch rod diameter, and the 2.5-inch free length compresses up to 0.75 inches at full deflection. The gold color coding identifies this as a heavy-duty rating in the industry-standard die spring color classification system. Toolmakers and die maintenance technicians are the typical installers of this component.

This die spring is suited for metal stamping, forming, and blanking operations where consistent force and repeatable deflection are required. It fits standard die sets in both production and prototype tooling environments. The compact 0.375-inch hole diameter makes it appropriate for confined pocket locations within die plates. Applications span light manufacturing through heavy industrial press work wherever a heavy-duty, gold-coded die spring is specified by the tooling design.

Key Features

• Heavy-duty duty rating with gold color coding per standard die spring classification
• Trapezoidal wire cross-section for higher load capacity in a compact envelope
• Chromium alloy steel construction for fatigue resistance under cyclic loading
• Spring rate of 50.00 pounds per inch with 41.3-pound maximum deflection load
• 0.75-inch maximum deflection from a 2.5-inch free length
• Manufactured under ISO 9001:2008 and ISO/TS 16949:2009 certified quality systems

Compatibility

Designed as a standard-dimension die spring for use in tooling applications requiring a 0.375-inch hole diameter, 0.1875-inch rod diameter, and 2.5-inch free length heavy-duty gold-class die spring.

Installation Notes

Die springs are installed by toolmakers or die maintenance technicians during die build or scheduled maintenance cycles. Always de-energize and lock out the press before accessing the die set. Seat the spring squarely in its pocket and verify the rod diameter clears the inner diameter without binding. Do not compress the spring beyond its rated maximum deflection of 0.75 inches, as over-compression will reduce service life.
