Associated Spring Raymond 104-832 Die Spring 2in Red

Product Description

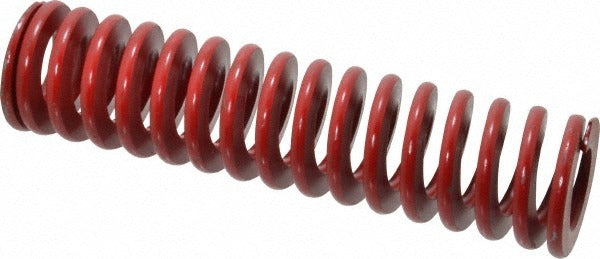

The ASSOCIATED SPRING RAYMOND 104-832 is a heavy-duty red die spring engineered for use in stamping dies, punch presses, and industrial tooling applications. It features a 2-inch hole diameter, a 1-inch rod diameter, and an 8-inch free length. The trapezoidal wire shape maximizes load capacity within the coil cross-section, allowing this spring to handle a maximum deflection load of 1041.9 pounds at a maximum deflection of 2.96 inches. Constructed from chromium alloy steel, the 104-832 delivers consistent force and fatigue resistance under repetitive high-load cycling. It weighs 2.268 pounds and is sold individually.

This die spring is suited for use in heavy industrial and manufacturing environments where controlled, repeatable spring force is required. Red color coding indicates a heavy load rating within the standard die spring classification system, making it straightforward to identify and replace in the field. Typical applications include metal stamping dies, injection mold tooling, and mechanical press components. It is installed and serviced by tool and die makers, maintenance machinists, and industrial equipment technicians.

Key Features

• 2-inch hole diameter and 1-inch rod diameter for precise die and tooling fitment
• 8-inch free length provides extended working travel in deep die sets
• Maximum deflection load of 1041.9 pounds with a spring rate of 330 pounds per inch
• Trapezoidal wire cross-section increases load capacity versus round wire of equal coil size
• Chromium alloy steel construction resists fatigue under high-cycle repeated compression
• Red color coding identifies heavy load class per standard die spring classification

Compatibility

Designed as an OEM-style replacement or direct-fit die spring for industrial stamping and tooling assemblies requiring a 2-inch hole diameter, 1-inch rod diameter, and 8-inch free length heavy-load red-series die spring.

Installation Notes
