Associated Spring Raymond 103-230 Die Spring Blue

Product Description

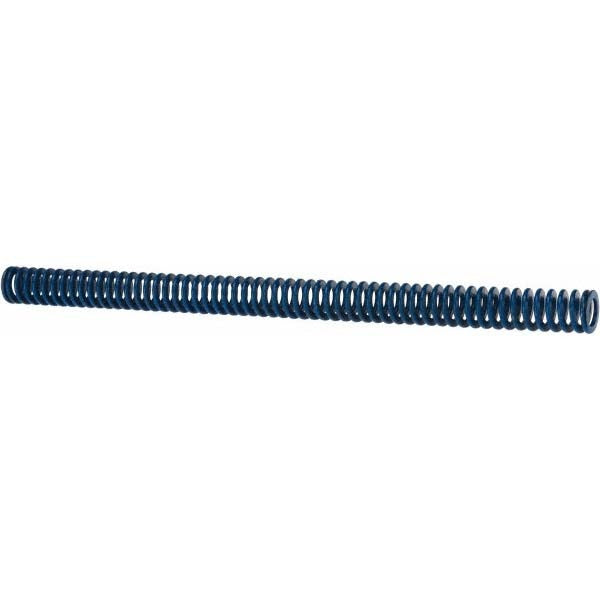

The ASSOCIATED SPRING RAYMOND 103-230 is a heavy-duty die spring designed for use in stamping dies, press tooling, and industrial machinery applications. It features a trapezoidal wire shape that delivers higher load capacity relative to its size compared to round-wire springs. With a 0.5 inch hole diameter, a free length of 7.5 inches, and a maximum deflection load of 45 pounds at 3.75 inches of travel, this spring handles consistent cyclic loading in demanding production environments. It is constructed from chromium alloy steel and color-coded blue for quick load-class identification during tooling setup and maintenance.

This die spring is suited for installation in punch-and-die assemblies, stripper plates, and other spring-loaded tooling components found in metal stamping and fabrication operations. The blue color designation indicates a light load rating under standard die spring classification systems. Maintenance technicians and tooling engineers working in industrial manufacturing settings are the primary installers of this component.

Key Features

• Trapezoidal wire profile provides higher load density than equivalent round-wire die springs
• 0.5 inch hole diameter and 9/32 inch rod diameter for precise rod-guided fitment
• 7.5 inch free length with 3.75 inches maximum deflection travel
• 45 pound maximum deflection load at full compression
• Spring rate of 12 pounds per inch for predictable, linear force output
• Chromium alloy steel construction for durability under repeated cycle loading
• Manufactured under ISO 9001:2008 and ISO/TS 16949:2009 certified quality systems

Compatibility

Designed as a standard die spring replacement for rod-guided tooling assemblies requiring a 0.5 inch hole diameter and 9/32 inch rod diameter with a 7.5 inch free length in the blue light-load classification.

Installation Notes

Die springs should be installed by qualified tooling technicians with the press de-energized and all stored energy released before servicing. Ensure the guide rod diameter matches the 9/32 inch rod specification to prevent lateral loading and premature wear. Do not compress the spring beyond its rated maximum deflection of 3.75 inches. Inspect the spring for cracking, permanent set, or corrosion at each scheduled tool maintenance interval.
