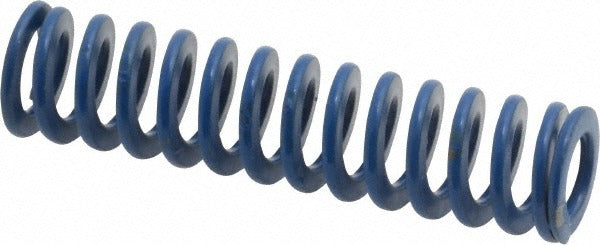

Associated Spring Raymond 103-208 Die Spring Medium Duty Blue

Product Description

The ASSOCIATED SPRING RAYMOND 103-208 is a medium-duty die spring engineered for use in stamping dies, punch presses, and industrial tooling applications. It features a trapezoidal wire cross-section that increases load-bearing surface area compared to round-wire springs, making it well suited for cyclic compression loads. The spring has a 0.5-inch hole diameter, a 9/32-inch rod diameter, a 2-inch free length, and a maximum deflection load of 55 pounds. Manufactured from chromium alloy steel, it delivers consistent performance under repeated compression cycles. The blue color coding identifies it as a medium-duty rating per standard die spring classification conventions.

This die spring is intended for use in metal stamping, injection mold tooling, press tooling, and similar industrial die and fixture applications. It fits over a 9/32-inch guide rod and seats into a 0.5-inch pocket. Typical installers include tool and die makers, mold technicians, and maintenance machinists working in manufacturing and fabrication environments. The 2-inch free length suits compact die sets where space is limited.

Key Features

• Trapezoidal wire cross-section for higher load capacity relative to spring size
• 0.5-inch hole diameter and 9/32-inch rod diameter for precise rod and pocket fitment
• 55-pound maximum deflection load with 1-inch maximum deflection
• Spring rate of 55 pounds per inch for predictable, linear compression behavior
• Chromium alloy steel construction for wear and fatigue resistance
• Blue color coding identifies medium-duty classification at a glance

Compatibility

Designed as an OEM-style replacement or direct fitment die spring for medium-duty stamping die and punch press tooling applications requiring a 0.5-inch hole diameter and 9/32-inch rod diameter with a 2-inch free length.

Installation Notes

Die springs should be installed by qualified tool and die technicians or maintenance machinists familiar with press tooling assembly. Ensure the mating rod diameter and pocket bore match the spring specifications before installation to prevent binding or misalignment. De-energize and lock out the press or tooling equipment before servicing any die components. Do not compress the spring beyond its rated maximum deflection of 1 inch, as over-compression accelerates fatigue failure.
