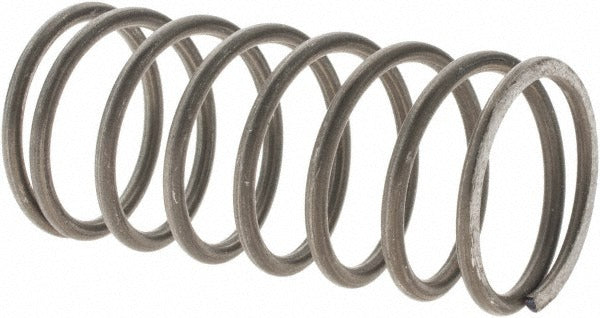

Associated Spring Raymond 020063000 Compression Spring

Product Description

The ASSOCIATED SPRING RAYMOND 020063000 is a compression spring manufactured from spring steel and designed for applications requiring consistent, reliable return force in a compact form factor. It features a 15/16 inch outside diameter and a 2-1/32 inch free length, with a wire diameter of 0.0800 inches and a spring rate of 16 pounds per inch. This spring is suited for mechanical assemblies where controlled compression and rebound are required. It is typically installed by mechanical technicians, MRO professionals, and trade specialists working on equipment requiring small-format compression hardware.

This spring is used in a wide range of industrial and trade applications including HVAC equipment assemblies, valve mechanisms, electrical enclosures, and general mechanical linkages. Its spring steel construction provides durability under repeated compression cycles. The compact outside diameter and moderate free length make it a practical fit for confined mounting spaces in both residential and light commercial equipment.

Key Features

• Spring steel construction for durability under cyclic loading
• 15/16 inch outside diameter fits compact mechanical cavities
• 2-1/32 inch free length provides adequate stroke range for most light-duty applications
• 0.0800 inch wire diameter balances flexibility and load capacity
• 16 lb per inch spring rate delivers consistent, measurable return force

Compatibility

Designed as an OEM-style replacement or service component for mechanical assemblies requiring a compression spring with a 15/16 inch outside diameter and 2-1/32 inch free length.

Installation Notes

Install and remove compression springs only after de-energizing and locking out the associated equipment per applicable safety procedures. Ensure the spring seating surfaces are clean and free of debris before installation. Use appropriate hand tools and eye protection when compressing or releasing spring tension during service work.
