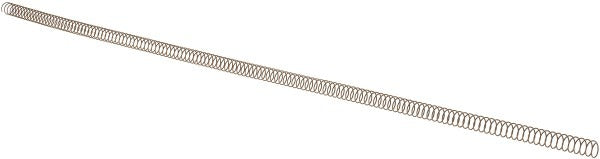

Associated Spring Raymond 020056000 Compression Spring

Product Description

The ASSOCIATED SPRING RAYMOND 020056000 is a small-diameter compression spring manufactured from music wire. It features an outside diameter of 11/64 inches, a free length of 10 inches, and a wire diameter of 0.0140 inches. The spring rate is 0.0313 pounds per inch, making this a light-duty, low-force spring suited for applications requiring precise, consistent compression characteristics. Music wire construction provides high tensile strength and reliable fatigue resistance across repeated compression cycles. This part is sold individually and is subject to a minimum order quantity of 12 units.

This compression spring is appropriate for light mechanical assemblies, instrumentation, and similar trade or industrial applications where a small-diameter, long-travel compression spring is required. Its slender profile and low spring rate make it well suited for low-load mechanisms where controlled deflection is critical. Technicians and assemblers working in HVAC, plumbing, electrical, or general mechanical service may encounter this spring type in valve assemblies, switch mechanisms, and similar components.

Key Features

• Outside diameter of 11/64 inches for compact, small-bore fitment
• 10-inch free length provides extended travel range
• 0.0140-inch wire diameter for light-duty, low-force applications
• Music wire construction delivers high tensile strength and fatigue resistance
• Low spring rate of 0.0313 pounds per inch for controlled, consistent deflection

Compatibility

Designed as an OEM-style replacement or service component for light mechanical assemblies requiring a small-diameter compression spring with a 10-inch free length and 11/64-inch outside diameter.

Installation Notes

Installation is typically performed by a qualified technician or assembler familiar with spring-loaded mechanisms. Before servicing any assembly containing this spring, de-energize or depressurize the host system as appropriate for the application. Handle slender, long springs carefully to avoid kinking or permanent set during installation. Verify free length and outside diameter against the host component specification before installing.
