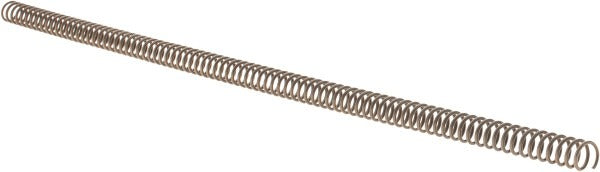

Associated Spring Raymond 020052000 Compression Spring

Product Description

The ASSOCIATED SPRING RAYMOND 020052000 is a compression spring manufactured from spring steel, designed to store and release mechanical energy under axial load. It features an outside diameter of 3/8 inch and a free length of 11.5 inches, with a wire diameter of 0.0470 inches and a spring rate of 2.3 pounds per inch. This spring is suited for a wide range of mechanical assemblies where a slender, long-travel compression element is required. It is typically installed by mechanical technicians, millwrights, HVAC technicians, or maintenance personnel working on equipment that requires precise load resistance and return force.

This compression spring is applicable across residential and commercial mechanical systems, including HVAC equipment, plumbing assemblies, valves, and general industrial machinery. Its spring steel construction provides reliable cyclic performance in applications where consistent force and deflection characteristics are critical. The minimum order quantity for this part is 12 units, and it is packaged individually per unit.

Key Features

• Outside diameter of 3/8 inch for compact installation in tight assemblies
• Free length of 11.5 inches provides extended travel range
• Wire diameter of 0.0470 inches for balanced flexibility and load capacity
• Spring rate of 2.3 pounds per inch delivers predictable, linear force response
• Spring steel construction offers durability and consistent cyclic performance

Compatibility

Designed as an OEM-style replacement or aftermarket compression spring for mechanical assemblies requiring a 3/8 inch OD, 11.5 inch free length spring with a 2.3 pounds per inch spring rate.

Installation Notes

Installation should be performed by qualified mechanical or maintenance personnel familiar with spring-loaded assemblies. Depressurize or de-energize any system before replacing or installing compression springs to prevent unexpected release of stored mechanical energy. Verify that the mating bore or guide rod diameter is compatible with the spring outside diameter and wire size before installation. Follow applicable equipment service documentation and relevant safety standards for the specific assembly type.
