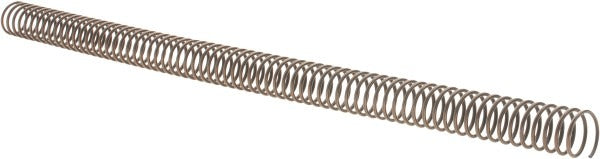

Associated Spring Raymond 020050000 Compression Spring

Product Description

The ASSOCIATED SPRING RAYMOND 020050000 is a helical compression spring manufactured from spring steel. It features an outside diameter of 0.625 inches, a free length of 11.5 inches, and a wire diameter of 0.054 inches. The spring rate is 1 pound per inch, making it suited for light-load applications where consistent, predictable deflection is required. Compression springs of this profile are used across HVAC, plumbing, electrical, and general mechanical assemblies wherever a return force or load-bearing element is needed. Licensed tradespeople and mechanical technicians are the typical end users for this component.

This compression spring fits applications requiring a slender, extended-length spring with a light spring rate. Its 11.5-inch free length and 0.625-inch outside diameter suit installations in valve assemblies, damper mechanisms, equipment access panels, and similar light-duty mechanical systems found in residential and light commercial trade applications. The spring steel construction provides reliable fatigue resistance under repeated cycling.

Key Features

• Outside diameter of 0.625 inches suits standard spring pockets and housings
• 11.5-inch free length accommodates extended travel applications
• 0.054-inch wire diameter provides a 1 pound per inch spring rate for light-load use
• Spring steel material offers good fatigue life under repeated compression cycles
• Compact weight of 0.01 pounds minimizes added load to assemblies

Compatibility

Designed as an OEM-style replacement or aftermarket compression spring for light-duty mechanical assemblies requiring a 0.625-inch OD, 11.5-inch free length helical spring with a 1 pound per inch spring rate.

Installation Notes

Compression springs of this type are installed by mechanical technicians and trade professionals during equipment assembly or service. De-energize or depressurize any system before replacing a spring component. Ensure the spring is fully seated in its pocket or retainer before closing the assembly. Verify that the installed free length and outside diameter match the original specification to maintain proper load characteristics.
