Associated Spring Raymond 020002000 Extension Spring

Product Description

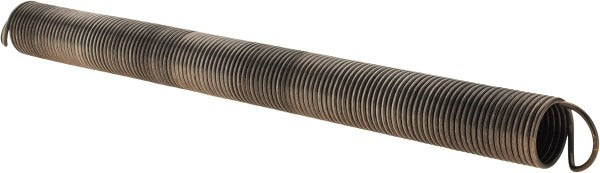

The ASSOCIATED SPRING RAYMOND 020002000 is a steel extension spring designed to store and release tensile energy in mechanical assemblies. With a 13/16-inch outside diameter and a 10-inch overall length, this spring operates at a 1 lb/in spring rate, making it well-suited for light-duty tensioning and return-force applications. Constructed from steel, it delivers consistent elastic performance across repetitive load cycles. This type of extension spring is a standard component in HVAC damper linkages, access panel latches, and general mechanical assemblies found in trade and industrial environments.

This spring is applicable in residential and light commercial settings where a reliable extension spring with a moderate length and low spring rate is required. Typical installation scenarios include HVAC equipment enclosures, ductwork damper return mechanisms, and other mechanical systems requiring a controlled tensile return force. Its 10-inch length and 13/16-inch OD make it a practical fit for confined mounting spaces common in trade equipment.

Key Features

• 1 lb/in spring rate for consistent, repeatable tensile force
• 13/16-inch outside diameter fits standard spring mounting hooks and brackets
• 10-inch overall length accommodates extended travel in damper and linkage applications
• Steel construction for durability in mechanical cycling environments
• Lightweight at 0.01 pounds, minimizing added load on assemblies

Compatibility

Designed as an OEM-style replacement or service stock extension spring for mechanical assemblies requiring a 13/16-inch OD, 10-inch length, 1 lb/in rate steel extension spring.

Installation Notes

Extension springs are typically installed by HVAC technicians, mechanical contractors, or maintenance technicians as part of damper, linkage, or panel hardware service. De-energize all associated mechanical and electrical systems before replacing spring components. Use appropriate spring hooks or tooling to seat the spring ends securely - do not overstretch the spring beyond its rated travel during installation. Verify that the replacement spring rate and dimensions match the original specification before completing the repair.
