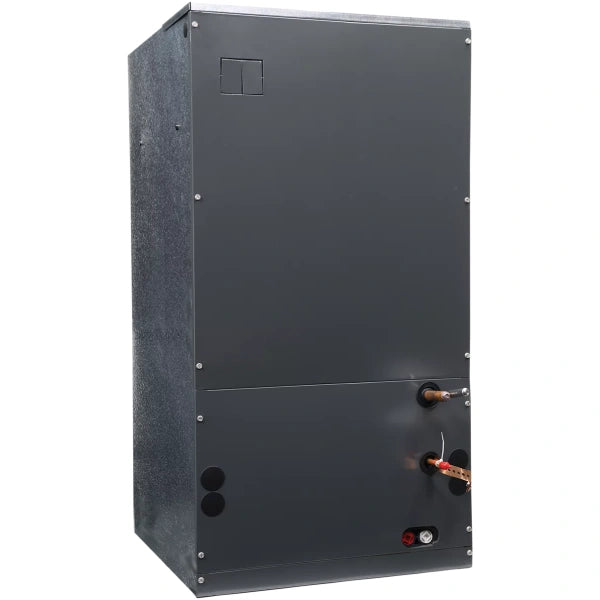

Aspen Pumps aem604-000+ecl00 5 Ton Air Handler

Product Description

The ASPEN PUMPS aem604-000+ecl00 is a 5-ton multi-position air handler built for residential and commercial HVAC systems. It delivers consistent airflow across a range of installation orientations and is equipped with a high-efficiency ECM blower motor for quiet, energy-conscious operation. The unit features a factory-installed thermal expansion valve (TXV) that regulates refrigerant flow and supports stable system performance. Galvanized steel construction provides corrosion resistance and long service life. Licensed HVAC technicians install this unit as part of a split or packaged system where flexible duct configurations are required.

This air handler supports upflow, downflow, horizontal left, and horizontal right configurations, making it well-suited for diverse ductwork layouts in both residential and light commercial applications. The multi-position design reduces the need for application-specific units on jobs with varying mechanical room orientations. Easy-access panels simplify filter inspection, coil service, and blower maintenance once the unit is in place.

Key Features

• 5-ton nominal cooling capacity for residential and light commercial loads
• Multi-position installation: upflow, downflow, horizontal left, and horizontal right
• ECM blower motor for reduced energy consumption and low-noise operation
• Factory-installed TXV for optimized refrigerant flow control
• Galvanized steel cabinet for corrosion resistance and structural durability
• Easy-access service panels for routine maintenance

Compatibility

Designed as an OEM-style replacement or new-installation air handler for 5-ton residential and light commercial split HVAC systems requiring multi-position flexibility.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. Disconnect and lock out all electrical power before beginning installation or service. Ensure the refrigerant circuit is properly evacuated and charged per EPA Section 608 requirements before startup. Verify duct static pressure and airflow settings on the ECM motor match the design specifications for the system.

Technical Specifications

• Nominal Cooling Capacity: 5 tons
• Installation Positions: Upflow, Downflow, Horizontal Left, Horizontal Right
• Blower Motor Type: ECM
• Expansion Device: Factory-installed TXV
• Cabinet Material: Galvanized Steel

Standard Information

• Brand: ASPEN PUMPS
• Manufacturer Part Number: aem604-000+ecl00
