Aspen Pumps 83912 Asp-Mo-230-Sp Silent Plus Mini Pump

Product Description

The ASPEN PUMPS 83912 Asp-Mo-230-Sp Silent Plus Mini Pump is a mini-split condensate pump kit designed for ductless mini-split air conditioner systems. It features a flexible type design with a 1/4 inch inner diameter x 5 foot length discharge size. The pump has a flow rate of 2.9 to 3.2 GPH at 0 head, and 1.2 at 33 foot head, with a 33 foot discharge head.

• Self Priming and Pump installs remotely above ceiling or inside line set cover
• Pan mount and inline style reservoir included and Modular terminals for fast connection
• Gravity Inlet

Product Highlights

This condensate pump provides installation flexibility and proven reliability for mini-split systems, ensuring efficient condensate removal.

Product Information

Standard Information

• Brand: ASPEN PUMPS
• Manufacturer Part Number: 83912
• Country of Origin: United Kingdom

Technical Specifications

• Type: Flexible
• Discharge Size: 1/4 Inch Inner Diameter x 5 Foot Length
• Overall Dimensions: 4.25 Inch Length x 1.5 Inch Width x 2 Inch Height
• Flow Rate: 2.9 to 3.2 GPH at 0 Head, 1.2 at 33 Foot Head
• Discharge Head: 33 Foot
• Power Cord Length: 6 Foot
• Power Rating: 16 Watt
• Input Supply Rating: 208 to 230 Volt, 0.11 Amp
• Temperature Rating: 104 Deg F

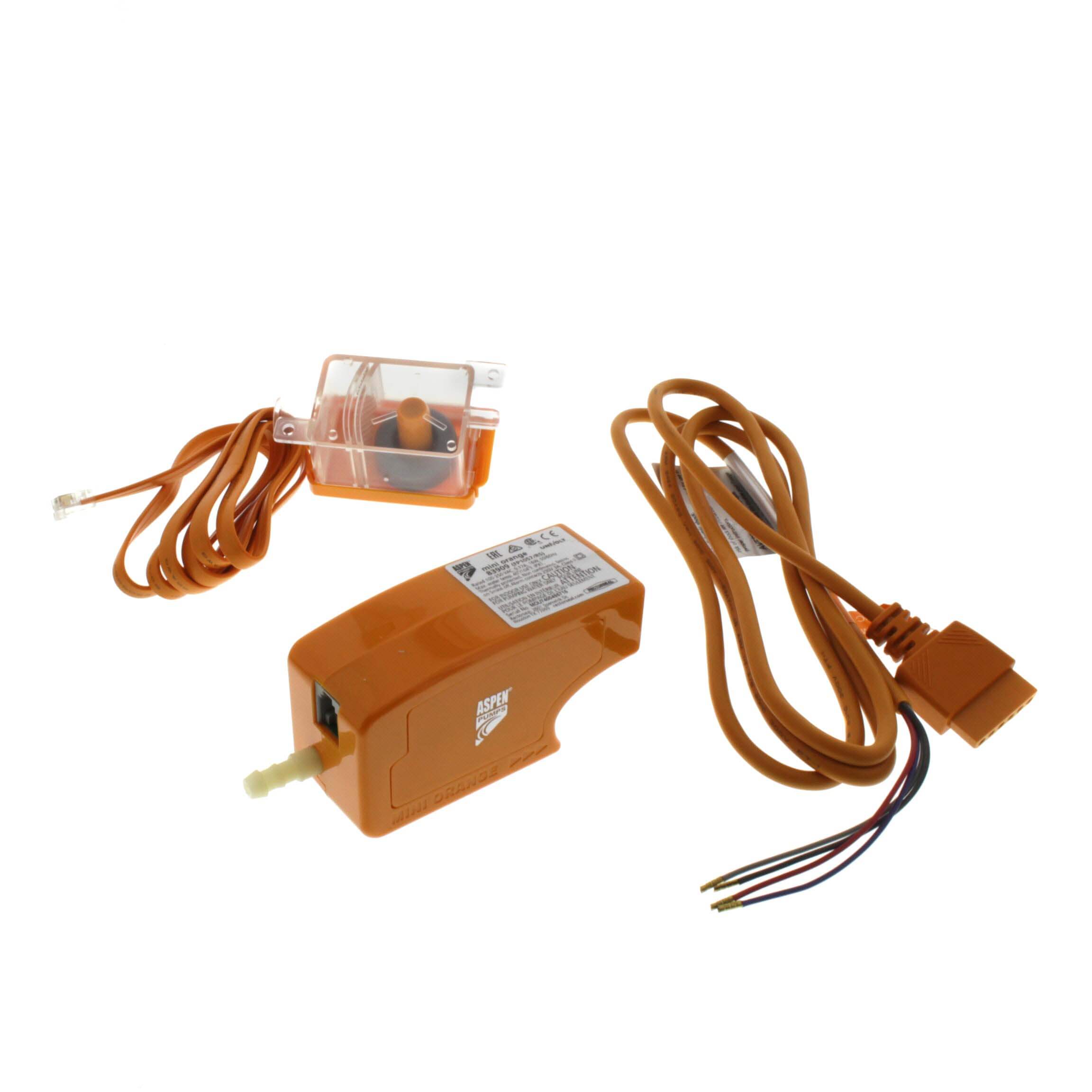

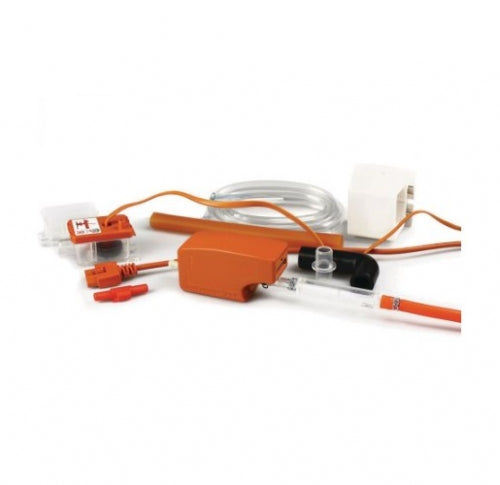

• Inclusions Features: Pump Assembly, In-Line Reservoir, Submersible Reservoir, 5/8 Inch Inner Diameter x 8 Inch Length Inlet Tube, 1/4 Inch Inner Diameter x 5 Foot Length Vinyl Discharge Tube, 1/4 Inch Inner Diameter x 6 Inch Length Vinyl Breather Tube, Modular 6 Foot Power Cab
• Exclusions: Plenum Rated
• Application: Ductless Mini-Split Air Conditioner System
• Applicable Standard: CSA (Canada and US)
• Manufacturer Part Number: 83912
• Manufacturer Name: Aspen Pumps
• Voltage: 230V
• Product Type: Condensate Pump
• Max Head (Ft): 33
• Max Flow (GPM): 3
• Mounting Options: Versatile space-saving installation
• Wattage: 16W
