Aspen Pumps 83812 Asp-Ma230-Sp 230V Mini Silent Plus Pump

Product Description

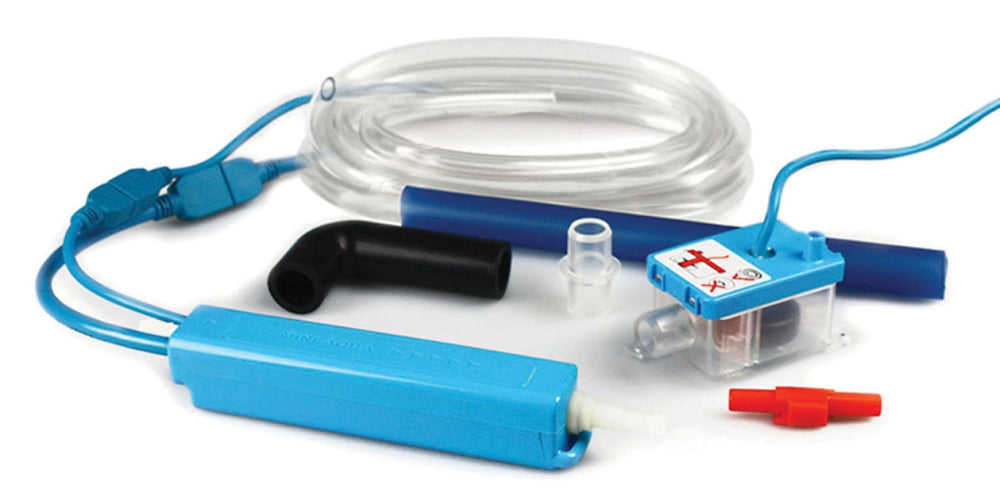

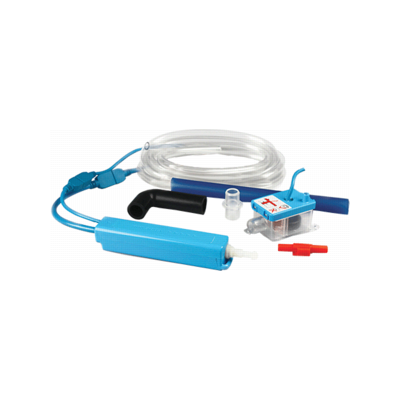

The ASPEN PUMPS 83812 Asp-Ma230-Sp is a 230V mini silent plus pump designed as a mini-split condensate pump kit. It features an ultra-slim, self-priming design with an integral hanging loop. This pump is suitable for ductless mini-split air conditioner systems. It has a 5/8 inch reservoir inlet and a 1/4 inch discharge size. The power rating is 16 Watt.

• Ultra-Slim profile and integral hanging loop
• Self Priming
• Remote Pump Install Ideal for Noise Sensitive Areas

Product Highlights

The Aspen Pumps 83812 is designed for easy vertical installation and quiet operation. It is epoxy filled for resistance to shock, vibration, moisture, and chemicals.

Product Information

Standard Information

• Brand: ASPEN PUMPS
• Manufacturer Part Number: 83812
• Country of Origin: US

Technical Specifications

• Type: Ultra-Slim, Self-Priming, Integral Hanging Loop, Silent Plus
• Application: Ductless Mini-Split Air Conditioner System
• Applicable Standard: CSA (Canada and US)
• Discharge Head: 0 to 33 Foot
• Discharge Size: 1/4 Inch
• Flow Rate: 2.9 GPH (0 Foot Head)/1.2 GPH (33 Foot Head)
• Input Voltage: 230 Volt
• Input Current: 0.1 Amp
• Manufacturer: The Rectorseal Corporation
• Manufacturer Part Number: 83812
• Power Cord Length: 6 Foot
• Power Rating: 16 Watt
• Reservoir Inlet Size: 5/8 Inch
• Temperature Rating: 104 Deg F
• Dry Contact Rating: 3 Amp NC
• Duty Cycle: 50 Percent (5 Minute ON/5 Minute OFF)
• Suction Lift: 5 Foot
• Sound Level: 19 Decibel
• Wattage: 16 watts
