Aspen CM36A3G-177L-006 Uncased Downflow Coil 3 Ton

Product Description

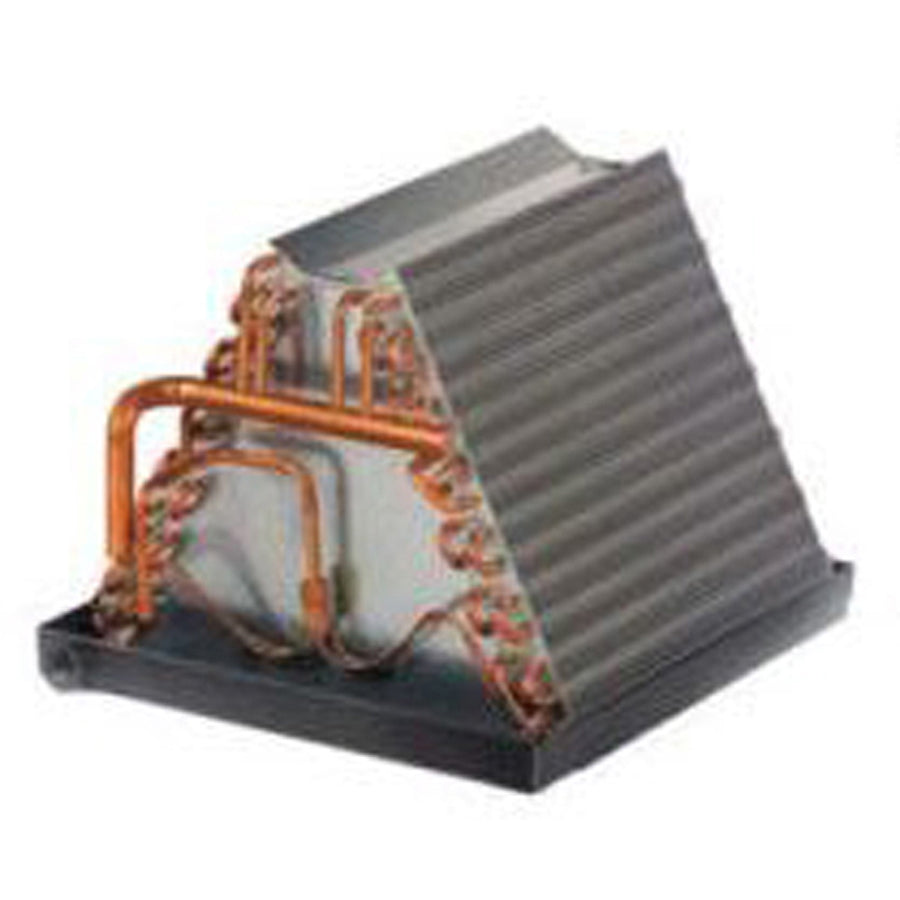

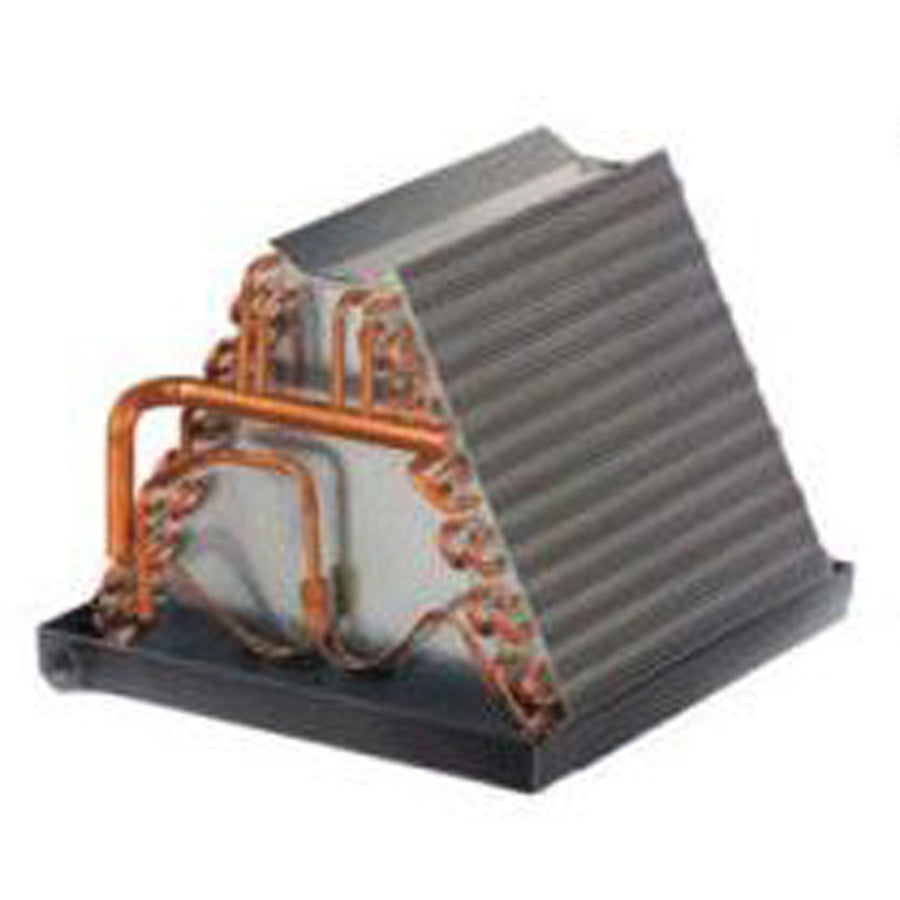

The ASPEN CM36A3G-177L-006 is an uncased downflow evaporator coil rated at 36,000 BTU/h (3 tons) for use in manufactured and mobile home HVAC applications. It features rifled copper tubing and enhanced aluminum fins for efficient heat transfer, and is designed for R-410A refrigerant systems. The coil is immersion-tested at 500 psi, then nitrogen-pressurized and sealed before shipment, ensuring leak-free performance out of the box. Licensed HVAC technicians install this coil as the indoor heat-exchange component in split-system air conditioners and heat pumps paired with manufactured home furnaces.

This coil is engineered specifically for downflow configurations common in manufactured and mobile home furnace installations. Left-hand refrigerant and plumbing connections make it compatible with left-hand-access equipment layouts. The liquid line connection is 3/8 inch ODS and the suction line is 3/4 inch ODS, suitable for 1.5-ton through 3-ton system pairings. A liquid line Schrader valve is included for hiss-testing during installation. The single left-hand 3/4 inch FPT condensate drain connection on the 177L pan, combined with the included condensate drain elbow and flexible drain tubing, simplifies rough-in for tight mobile home utility spaces.

Key Features

• Rifled copper tubing and enhanced aluminum fins for improved heat transfer efficiency
• Immersion-tested at 500 psi, then nitrogen-pressurized and sealed for verified leak integrity
• Left-hand refrigerant and plumbing connections with 3/8 inch ODS liquid line and 3/4 inch ODS suction line
• Heavy-duty polypropylene drain pan with single left-hand 3/4 inch FPT drain connection
• Liquid line Schrader valve included for field hiss-testing
• Downflow plate kit, condensate drain elbow, and flexible drain tubing included
• ETL listed for use with R-22 and R-410A when a proper metering device is installed

Compatibility

AHRI certifiable with all brands of air conditioner and heat pump systems. ETL listed for use with both R-22 and R-410A refrigerants when the proper metering device is used. Designed for downflow installations in manufactured and mobile home furnace applications.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with applicable local codes and the equipment manufacturer's instructions. Shut down all electrical power and isolate the refrigerant circuit before beginning coil replacement or installation. A flow restrictor (piston-style metering device) is included; verify the correct metering device rating for the matched outdoor unit before brazing connections. Always pressure-test and evacuate the refrigerant circuit to the required micron level before introducing refrigerant.

Technical Specifications

• Capacity: 36,000 BTU/h
• Nominal Tonnage: 3 tons
• Refrigerant: R-410A (ETL listed for R-22 with proper metering device)
• Orientation: Downflow
• Casing: Uncased
• Coil Rows: 3
• Fin Material: Enhanced aluminum
• Tubing Material: Rifled copper
• Liquid Line Connection: 3/8 inch ODS
• Suction Line Connection: 3/4 inch ODS
• Drain Connection: Single left-hand 3/4 inch FPT
• Width: 17.75 inches
• Height: 17.5 inches
• Depth: 19.625 inches
• Weight: 36 pounds
• Test Pressure: 500 psi
• Drain Pan Material: Heavy-duty polypropylene
• Country of Origin: USA

Standard Information

• Brand: ASPEN
• Manufacturer Part Number: CM36A3G-177L-006
