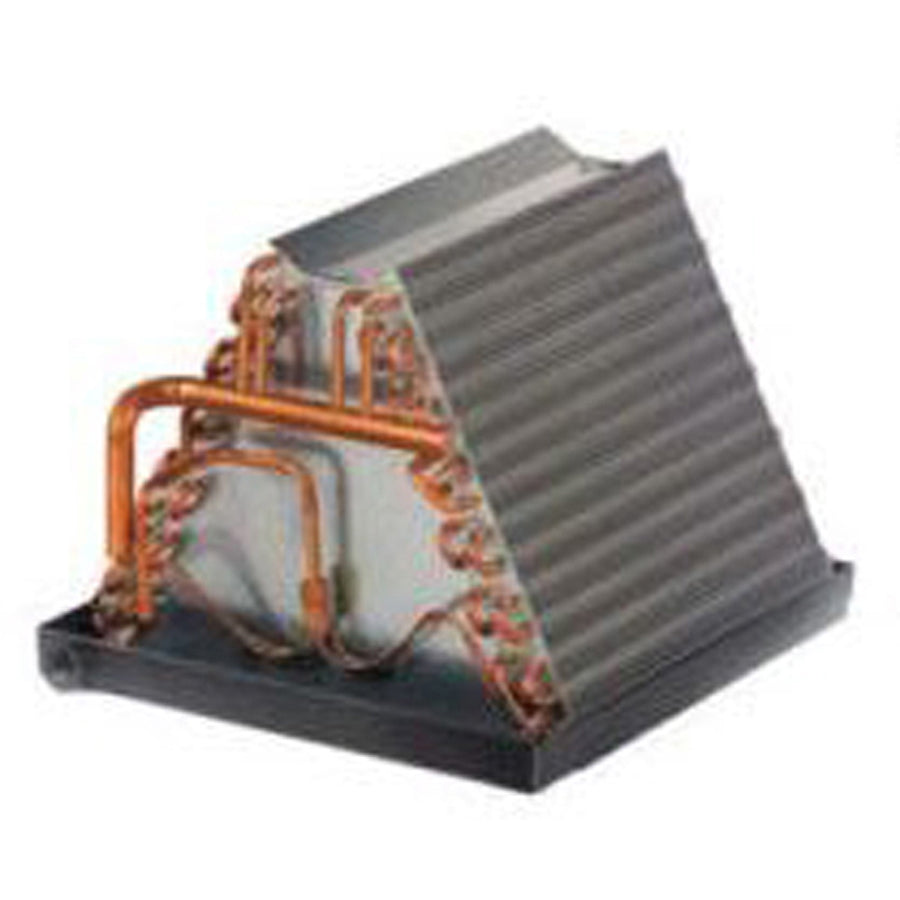

Aspen CM24B3G-177L-006 Uncased Evaporator Coil 2T Mobile Home

Product Description

The ASPEN CM24B3G-177L-006 is an uncased evaporator coil designed for mobile home HVAC applications. This left-hand configuration coil operates at a nominal capacity of 1.5 to 2 tons, making it appropriate for smaller residential cooling systems common in manufactured housing. As an uncased unit, it is intended for installation inside an existing air handler cabinet or coil enclosure rather than a standalone cabinet. Installation is typically performed by a licensed HVAC technician during a new system build or evaporator coil replacement service.

This coil is intended for mobile and manufactured home HVAC systems requiring a left-hand coil orientation. The M1 series designation indicates compatibility with mobile home air handler configurations. The 1.5 to 2 ton nominal capacity range suits smaller conditioned spaces typical of manufactured housing. This coil fits into system setups where the refrigerant lines and drain orientation align with a left-hand configuration, so confirming cabinet orientation and line-set routing before ordering is recommended.

Key Features

• Uncased design for installation within existing air handler enclosures
• Nominal capacity range of 1.5 to 2 tons suits smaller manufactured home systems
• Left-hand configuration for proper line-set and drain alignment
• M1 series designation for mobile home air handler fitment

Compatibility

Designed as an OEM-style replacement uncased evaporator coil for mobile and manufactured home HVAC systems requiring a left-hand coil in the 1.5 to 2 ton nominal capacity range.

Installation Notes

Installation should be performed by a licensed HVAC technician. Shut down and de-energize the air handler and disconnect refrigerant circuits before removing the existing coil. Verify coil orientation, line-set connections, and condensate drain routing match the left-hand configuration before installation. Follow local mechanical codes and EPA Section 608 requirements when handling refrigerant.

Technical Specifications

• Casing: Uncased
• Nominal Capacity: 1.5 to 2 tons
• Configuration: Left Hand
• Application: Mobile Home

Standard Information

• Brand: ASPEN
• Manufacturer Part Number: CM24B3G-177L-006
