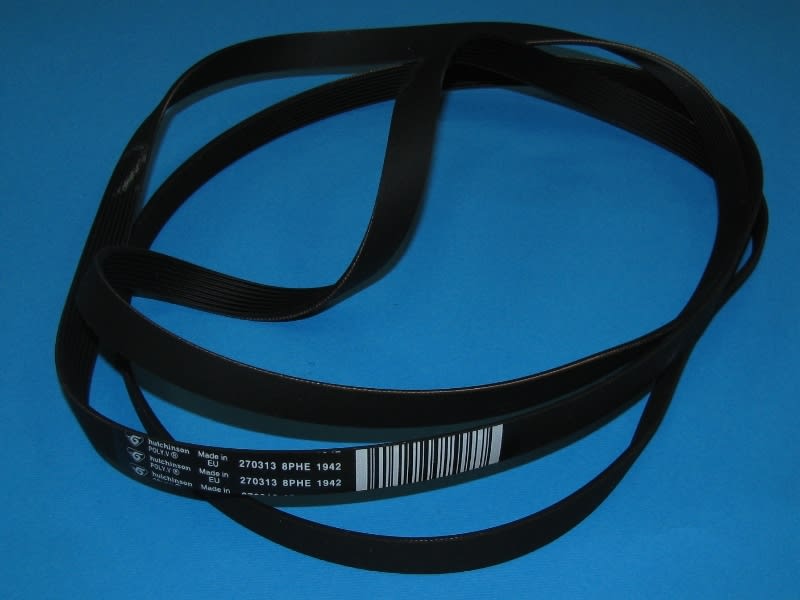

Asko 270313 Poly-v Drive Belt 8PHE 1942

Product Description

The ASKO 270313 is a Poly-V drive belt used in ASKO home appliance systems. This Hutchinson-manufactured belt is designated 8PHE 1942, indicating an 8-rib poly-V profile with a 1942 mm pitch length. Poly-V belts transmit rotational power from a motor pulley to a drum or secondary component, providing efficient torque transfer with minimal slip. This belt is a direct OEM-specification replacement part, intended for installation by qualified appliance service technicians handling drum drive or motor-to-component drive systems in ASKO appliances.

This belt is used in ASKO home appliances that rely on a poly-V drive configuration. Typical applications include drum-drive systems in ASKO washing machines or dryers where a multi-rib belt connects the motor to the drum pulley. The 8PHE 1942 designation is specific to the rib count and belt length required for correct fitment in these systems. Installation should only be performed when the correct belt specification has been confirmed for the unit being serviced.

Key Features

• Poly-V 8-rib profile for efficient, high-contact power transmission
• 1942 mm pitch length ensuring correct tension and fitment
• Hutchinson-manufactured to OEM specification standards
• Designed for drum or motor drive applications in ASKO appliances
• Direct replacement part for ASKO appliance drive systems

Compatibility

Designed as an OEM-specification replacement drive belt for ASKO home appliances requiring the 8PHE 1942 Poly-V belt designation. Confirm the belt specification against the appliance model and service documentation before installation.

Installation Notes

Appliance service technicians should disconnect power to the unit at the breaker or by unplugging before beginning any drive belt replacement. Relieve all tension from the motor or tensioner pulley before removing the old belt, and inspect pulley grooves for wear or debris before fitting the new belt. Route the belt according to the drive diagram in the appliance service manual, ensuring all ribs are fully seated in each pulley groove. Do not force the belt over pulleys using sharp tools, as this can damage the rib profile.

Technical Specifications

• Belt Type: Poly-V
• Rib Count: 8 (PHE profile)
• Belt Length: 1942 mm pitch length
• Manufacturer: Hutchinson

Standard Information

• Brand: ASKO
• Manufacturer Part Number: 270313
