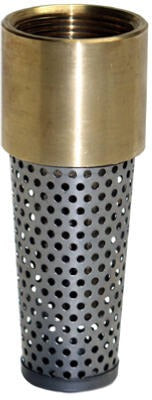

Ashland Water Group TFV-200NL Brass Foot Valve 2in 200PSI

Product Description

The ASHLAND WATER GROUP TFV-200NL is a 2-inch brass foot valve rated at 200 psi. Foot valves are installed at the bottom of a suction line to maintain prime in a pump system. A spring-loaded poppet closes the valve when flow stops, preventing backflow and keeping the suction line filled. This valve is built to comply with lead-free laws, making it suitable for potable water applications. Plumbers and pump service technicians install this valve in water well, irrigation, and water transfer systems. At 7.5 pounds, it is a solid, durable unit intended for permanent in-line installation.

The TFV-200NL is used in residential and light commercial pump applications where maintaining suction line prime is critical. Typical installations include submersible and jet pump suction lines, irrigation intake assemblies, and water transfer pump stations. The 2-inch connection size fits standard 2-inch piping configurations common in these systems. Its 200 psi pressure rating covers the operating range of most residential and commercial pump installations.

Key Features

• Spring-loaded poppet design provides positive sealing when flow stops
• Rated at 200 psi for reliable performance in demanding pump systems
• 2-inch connection size fits standard suction line piping
• Brass construction for durability in water service environments
• Complies with lead-free laws for safe use in potable water systems

Compatibility

Designed as an OEM-style replacement or new-installation foot valve for 2-inch suction line applications in residential and light commercial pump systems.

Installation Notes

Installation is typically performed by a licensed plumber. Shut off and lock out the pump before servicing any suction line components. The valve should be installed at the lowest point of the suction line, fully submerged, and oriented per the flow direction marked on the body. Follow all applicable local plumbing codes and IPC guidelines when installing in potable water service.

Technical Specifications

• Connection Size: 2 inches
• Pressure Rating: 200 psi
• Material: Brass
• Weight: 7.5 pounds
• Compliance: Lead free
• Package Quantity: 4 per package

Standard Information

• Brand: ASHLAND WATER GROUP
• Manufacturer Part Number: TFV-200NL
