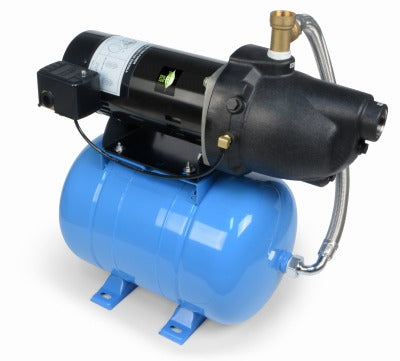

Ashland Water Group EFSWJ5PS Shallow Well Jet Pump System

Product Description

The ASHLAND WATER GROUP EFSWJ5PS is a 1/2 HP shallow well jet pump and pressure tank system designed for residential water supply applications. The unit delivers up to 7.5 GPM and operates on dual voltage — 115 or 230 volts — giving installers flexibility at the service panel. The motor includes built-in thermal protection to guard against overheating. The pump housing is constructed from non-corrosive thermoplastic, and an internal high-performance jet nozzle and venturi assembly are factory-installed. The 5-gallon pressure tank ships pre-charged, and the 30-50 psi pressure switch arrives pre-set and wired for automatic operation. All plumbing between the pump and tank is complete at the factory.

This system is suited for residential shallow well applications where the static water level is within the suction lift range of a jet pump. It is typically installed in homes, cabins, or light agricultural settings drawing water from a shallow well or cistern. Because the pump, motor, pressure tank, and pressure switch arrive as a fully assembled unit, installation time is reduced significantly compared to component-by-component builds. The assembly is intended for installation by a licensed plumber or qualified pump installer familiar with local plumbing codes and pressure system requirements.

Key Features

• 1/2 HP motor with dual voltage capability — 115 or 230 volts
• Flow capacity up to 7.5 GPM
• Non-corrosive thermoplastic pump housing resists rust and corrosion
• Internal high-performance jet nozzle and venturi — factory-installed
• 5-gallon pressure tank with factory pre-charged bladder
• 30-50 psi pressure switch pre-set and wired for automatic operation
• Complete pump-to-tank plumbing included — ready for connection at the well and supply line

Compatibility

Designed as an OEM-style shallow well jet pump tank system for residential potable water supply installations where static well depth falls within the suction lift limits of a standard shallow well jet pump configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off all electrical power at the breaker before making any wiring connections, and verify voltage selection on the motor matches the supply circuit before energizing. Do not exceed the rated operating pressure of the pressure tank or pressure switch. Pressure-test all plumbing connections before returning the system to service.

Technical Specifications

• Motor Output: 1/2 HP
• Maximum Flow Rate: 7.5 GPM
• Voltage: 115/230 volts (dual voltage)
• Pressure Switch Setting: 30-50 psi
• Pressure Tank Capacity: 5 gallons
• Pump Housing Material: Thermoplastic (non-corrosive)
• Thermal Protection: Built-in
• Weight: 49 pounds
• Package Quantity: 1

Standard Information

• Brand: ASHLAND WATER GROUP
• Manufacturer Part Number: EFSWJ5PS
