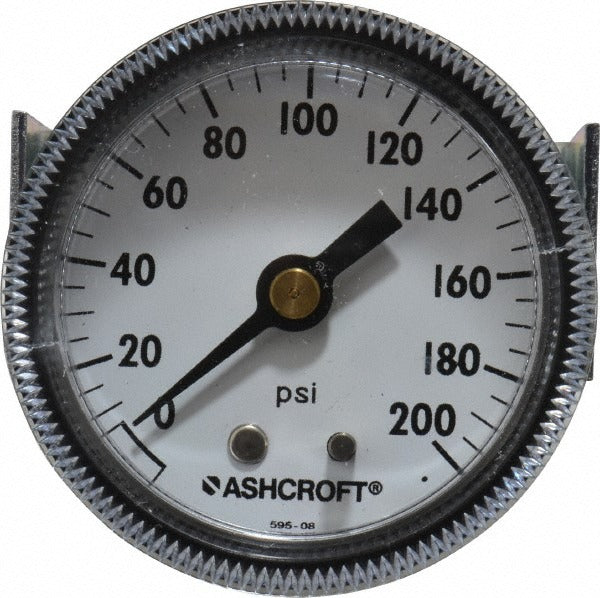

Ashcroft 662876000562 Pressure Gauge 0-200 Psi 2 in Dial

Product Description

The ASHCROFT 662876000562 is a commercial-grade analog pressure gauge designed for use in industrial and mechanical service applications. It features a 2-inch dial face with a measurement range of 0 to 200 psi and an accuracy rating of 3-2-3 percent of scale. The Bourdon tube is constructed of bronze, and the case is steel with a polycarbonate lens for impact resistance. This gauge installs via a 1/4-inch NPT center back mount connection, making it suitable for panel-mount or direct pipe-mount configurations. Plumbers, HVAC technicians, and industrial service contractors commonly specify this type of gauge for monitoring system pressures in water, air, and compatible fluid systems.

This gauge is suited for commercial pressure monitoring in HVAC, plumbing, compressed air, and general fluid systems. The center back mount configuration is a standard arrangement for equipment panels and pipe risers where the gauge face must remain visible and the connection enters from the rear. The 2-inch dial provides a compact footprint while still delivering readable graduation marks in field conditions. It carries a CRN (Canadian Registration Number) standard designation, indicating compliance with applicable Canadian pressure vessel and safety regulations.

Key Features

• 0 to 200 psi pressure range with 3-2-3 percent of scale accuracy
• 2-inch analog dial for compact, readable panel or pipe mounting
• 1/4-inch NPT center back mount connection for direct pipe or manifold install
• Bronze Bourdon tube for compatibility with water, air, and common system fluids
• Steel case with polycarbonate lens for durability in commercial service environments
• CRN-listed for compliance with Canadian pressure equipment standards

Compatibility

Designed as an OEM-style replacement or new-install commercial pressure gauge for systems requiring a 1/4-inch NPT center back mount connection and a 0 to 200 psi range.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or pipefitter. Shut off and depressurize the system completely before removing any existing gauge or installing this unit. Use appropriate thread sealant or PTFE tape on the NPT threads and tighten to a snug fit without over-torquing the brass port. Verify that the process fluid is compatible with bronze internal components before placing the gauge in service.
