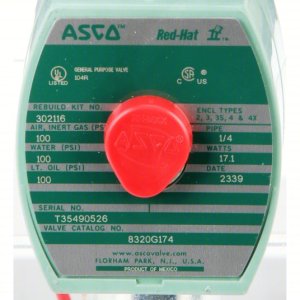

ASCO 8320G174-240V Solenoid Valve

Product Description

The ASCO 8320G174-240V Solenoid Valve is designed for pressure-at-any-port operation. This three-way valve is ideal for compact service applications. It allows flexible fluid routing and mounting in any position.

• Universal Port Configuration for flexibility in use.
• Operates without the need for upstream line pressure.
• Compact design suitable for tight space installations.

Product Highlights

Product Information

Standard Information

• Body Material: Brass
• Seal Material: NBR

Technical Specifications

• Pipe Size: 1/4 inch
• Operating Pressure Rating Min: 0 psi
• Operating Pressure Rating Max: 60 psi
• Valve Type: Direct Acting, 3-Way Universal
• Flow Factor (Cv): 0.12
• Operating Pressure Differential Air/Inert Gas: 100 psi (AC), 60 psi (DC)
• Maximum Fluid Temperature AC: 200°F (93°C)
• Maximum Fluid Temperature DC: 150°F (66°C)
