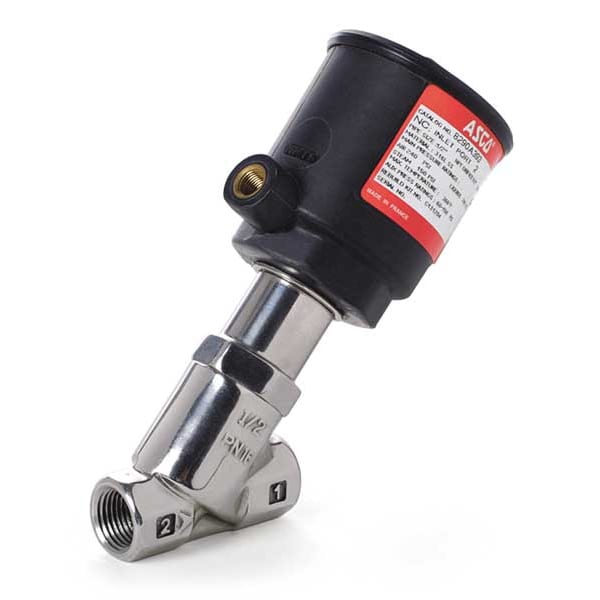

Asco 8290A384 Angle Body Valve NC 1/2 Pilot Operated

Product Description

The ASCO Angle Body Valve with MPN 8290A384 is a pilot-operated, normally closed valve designed for efficient fluid control. Built from durable bronze, this valve is suitable for various applications including air, water, and light slurries, making it a reliable choice for industrial settings. The valve features a one-half inch NPT threaded port and operates under pressures ranging from zero to two hundred forty PSI for fluids and zero to one hundred fifty PSI for steam.

• Constructed from robust bronze material
• Features PTFE seal for leak-proof operation
• Compact design with a weight of one point twenty-two pounds

Product Highlights

The ASCO 8290A384 is engineered to provide precise control in demanding conditions, ensuring reliable performance in various fluid applications.

Product Information

Standard Information

• Brand: Asco
• MPN: 8290A384

Technical Specifications

• Material: Bronze
• Seal Material: PTFE
• Size: 1/2 in
• Operating Temperature: Maximum of 366 °F
• Pressure Range: 0 to 240 PSI (Air, Inert Gas, Water, Light Oil)
• Flow Coefficient: 5.7 Cv
• Overall Dimensions: 2.76 in Width, 5.59 in Height, 6.08 in Length
