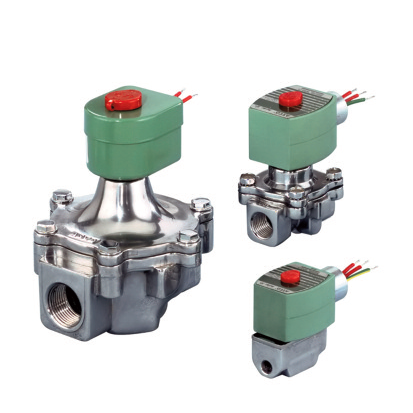

ASCO 8215G05012/DC 1in Gas Valve 12vdc

Product Description

The ASCO 8215G05012/DC is a reliable gas valve designed for various applications. It operates on twelve volts direct current and is a two-way valve suitable for natural gas. The valve features a one-inch pipe size which makes it suitable for most installations.

• Operates on 12V DC power
• Normally closed configuration
• Vertical and upright mounting options

Product Highlights

This gas valve can handle a maximum gas capacity of one million one hundred nineteen thousand BTU per hour. It is designed with durability in mind, constructed of aluminum with an NBR seat material. The housing is rated NEMA 4X, ensuring it can withstand various environmental conditions.

Product Information

Standard Information

• Brand: ASCO
• MPN: 8215G05012/DC

Technical Specifications

• Pipe Size: 1 inch
• Coil Voltage: 12V DC
• Watt Rating: 15.8 watts
• Max Gas Capacity: 1,119,000 BTU/hr
• Max Fluid Temperature: 104°F
• Min Fluid Temperature: 32°F
• Max Ambient Temperature: 104°F
• Min Ambient Temperature: 32°F
