Asco 8210G095-120VAC Valve 3/4 inches NC

Product Description

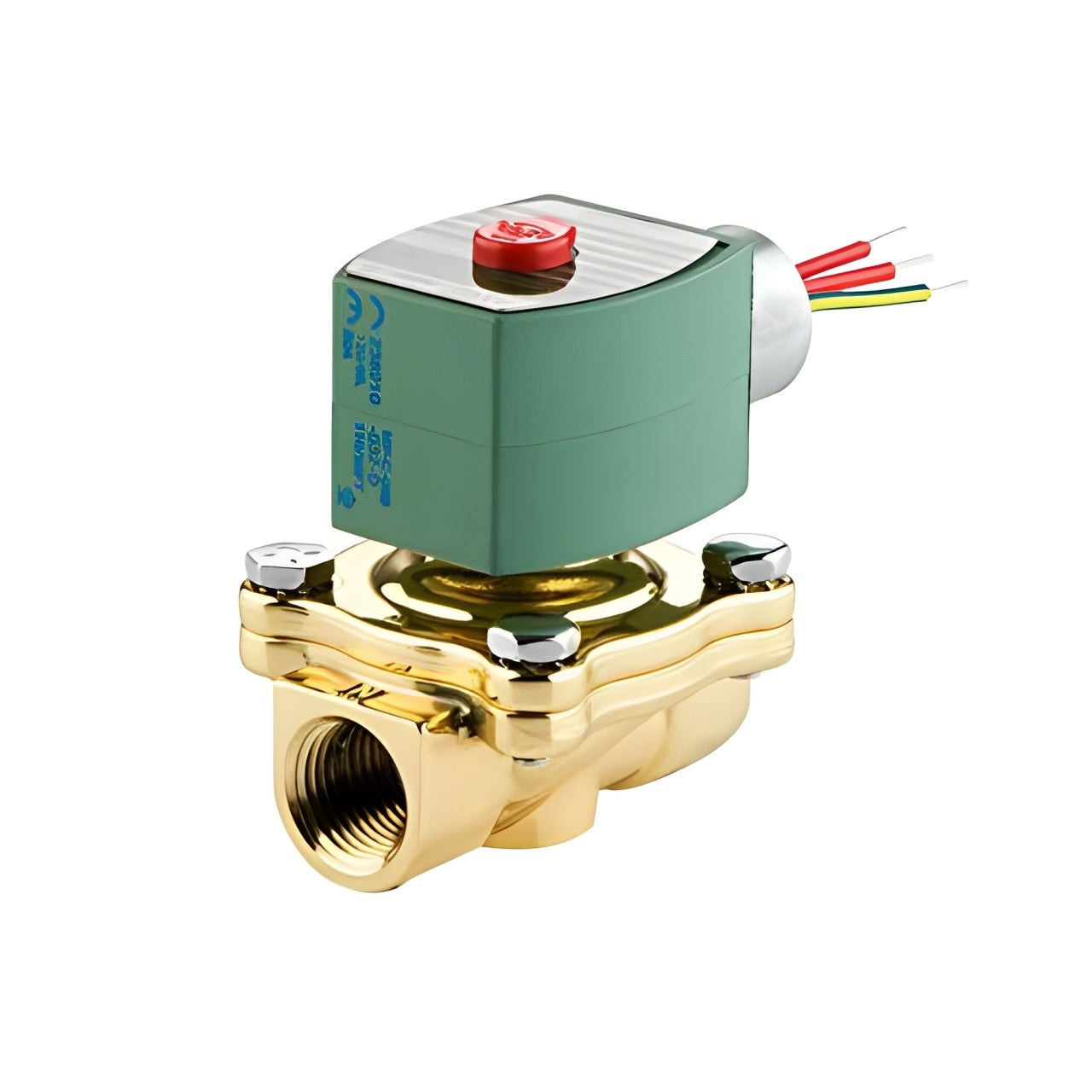

The ASCO 8210G095-120VAC is a solenoid valve with a 3/4" normally closed configuration. It is designed for use with air, inert gas, and water. The valve features a brass body and Buna N seals, suitable for general service applications with pressure ranging from 0 to 150 PSI.

• Wide range of pressure ratings, sizes, and resilient materials for long service life and low internal leakage
• High flow capacity valves for liquid, corrosives, and air/inert gas service
• General service models for industrial air compressors, laundry, power washing, industrial water control, pumps

Product Highlights

This valve is ideal for industrial applications requiring reliable control of air, inert gas, and water, with a robust design and versatile compatibility.

Product Information

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8210G095-120VAC
• Country of Origin: United States

Technical Specifications

• Max Media Temperature: 180 °F
• Media Compatibility: Air-Inert Gas,Water
• Power Supply: AC Line Power
• Type: Two Way
• Connection: NPT
• Valve Operation: Normally Closed
• Orifice Size: 3/4 in
• Enclosure Rating: NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
• Body Material: Brass
• Cv: 5
• Pipe Size: 3/4 in
• Wetted Materials: Brass, Buna N
• Pressure Range: 0 - 150 PSI
• Supply Voltage (Nominal): 120/60 VAC
• Function: General Service
• Seal Material: Buna N
• Brand: ASCO
• Model: 8210G095-120VAC
